AOD242 - Alpha & Omega Semiconductor

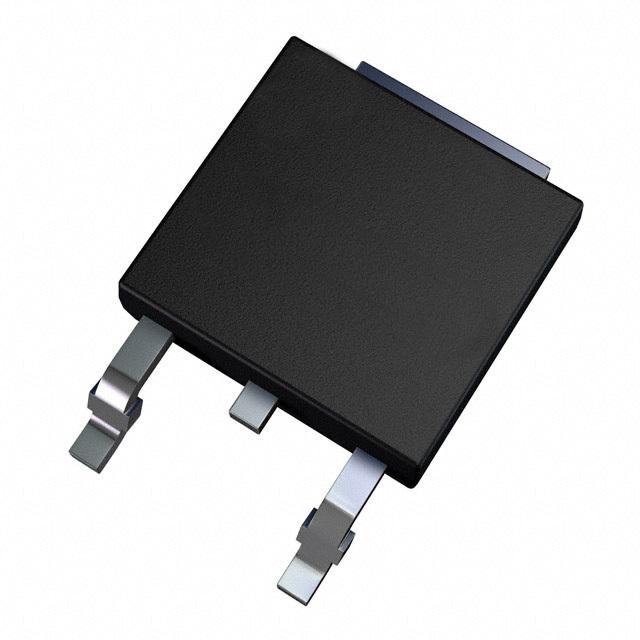

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AOD242
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW3622225
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

DPAK N-CH 40V 54A
Documentation

Datasheet

AOD242 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AOD242 Specifications

Attribute	Attribute Value

Part Number	AOD242
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW3622225
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Polarity	N-CH
Power Dissipation	53.5 W
Drain to Source Voltage (Vds)	40 V
Continuous Drain Current (Ids)	54A
Rise Time	2.5 ns
Input Capacitance (Ciss)	1350pF @20V(Vds)
Input Power (Max)	2.5 W
Fall Time	4 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta), 53.5W (Tc)
	expand all
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	End of Life
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

N-Channel 40V 14.5A (Ta), 54A (Tc) 2.5W (Ta), 53.5W (Tc) Surface Mount TO-252, (D-Pak)
