B72214S0140K101 - Epcos

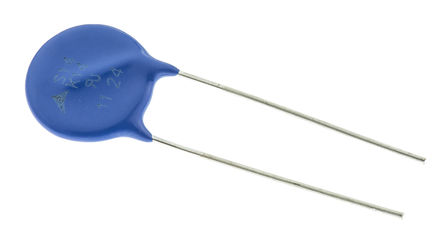

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

B72214S0140K101
Manufacturer

Epcos
ChipWorker Part#

CW12837867
Category

Varistor
Description

EPCOS B72214S0140K101 TVS Varistor, 14V, 18V, StandarD Series, 43V, Disc 14mm, Metal Oxide Varistor (MOV)
Documentation

Datasheet

B72214S0140K101 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

B72214S0140K101 Specifications

Attribute	Attribute Value

Part Number	B72214S0140K101
Manufacturer	Epcos
ChipWorker Part#	CW12837867
Category	Varistor
Documentation	Datasheet
Mounting Style	Through Hole
Voltage Rating (DC)	18 V
Voltage Rating (AC)	14 V
Capacitance	9950 pF
Clamping Voltage	43 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	18 V
Voltage Rating (AC Max)	14 V
	expand all
Size-Width	4.2 mm
Size-Height	18.5 mm
Lead Length	30 mm
Size-Thickness	4.2 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The Epcos B722 StandarD series are round shaped radial leaded, SIOV metal oxide varistors. These varistors have wide operating voltage range from 11VRMS to 1100VRMS. B722 series varistors are used as control or compensation elements in circuits either to provide optimal operating conditions or to protect against excessive transient voltages. The voltage dependent characteristics enable these varistors to protect against high transient voltage spikes.
High surge current ratings up to 8KA
Peak energy range from 0.3J to 410J
UL, CSA, VDE, CQC (S05/07, S10/S14, S20), IEC approved
Operating temperature range -40°C to 85°C
Endurance of 1000h at 85°C
±10% and ±5% varistor voltage tolerance
UL94V-0 rated flame retardant and epoxy resin coated
