BAT54AWT1G ,Schottky Diode - ON Semiconductor

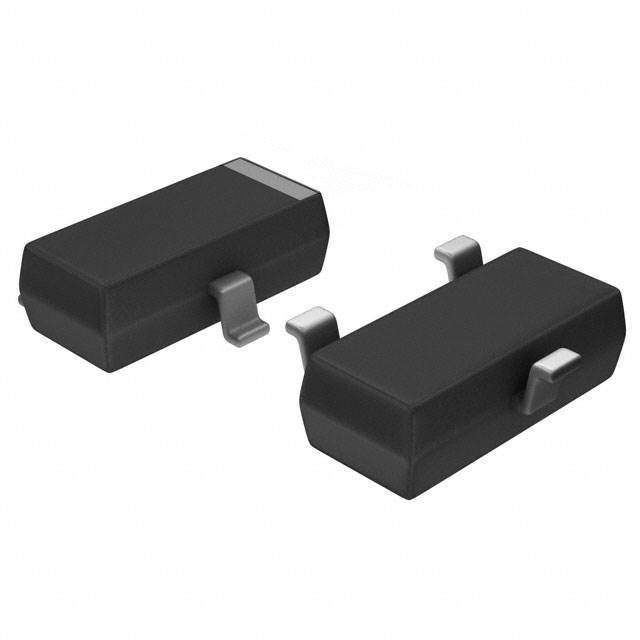

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

184 points

Part No

BAT54AWT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW1571117
Category

Schottky Diode
Package

SOT-323-3
Description

ON SEMICONDUCTOR BAT54AWT1G Small Signal Schottky Diode, Dual Common Anode, 30V, 200mA, 800mV, 600mA, 125℃
Documentation

Datasheet
Ships from

Moscow
Наличие

367 pcs In Stock
Estimated Price

$ 0.01

Buy BAT54AWT1G

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BAT54AWT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BAT54AWT1G Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BAT54AWT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW1571117
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-323-3
Voltage Rating (DC)	30.0 V
Current Rating	200 mA
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Forward Voltage	0.8 V
Power Dissipation	200 mW
Reverse recovery time	5 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	600 mA
Maximum Forward Voltage (Max)	800 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	expand all
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Micro Commercial Components

Product Description

The Common Anode Schottky Diode is designed for high speed switching applications, circuit protection and voltage clamping. Extremely low forward voltage reduces conduction loss. The miniature surface mount package is excellent for hand held and portable applications where space is limited.
