BAT6804WH6327XTSA1 - Infineon

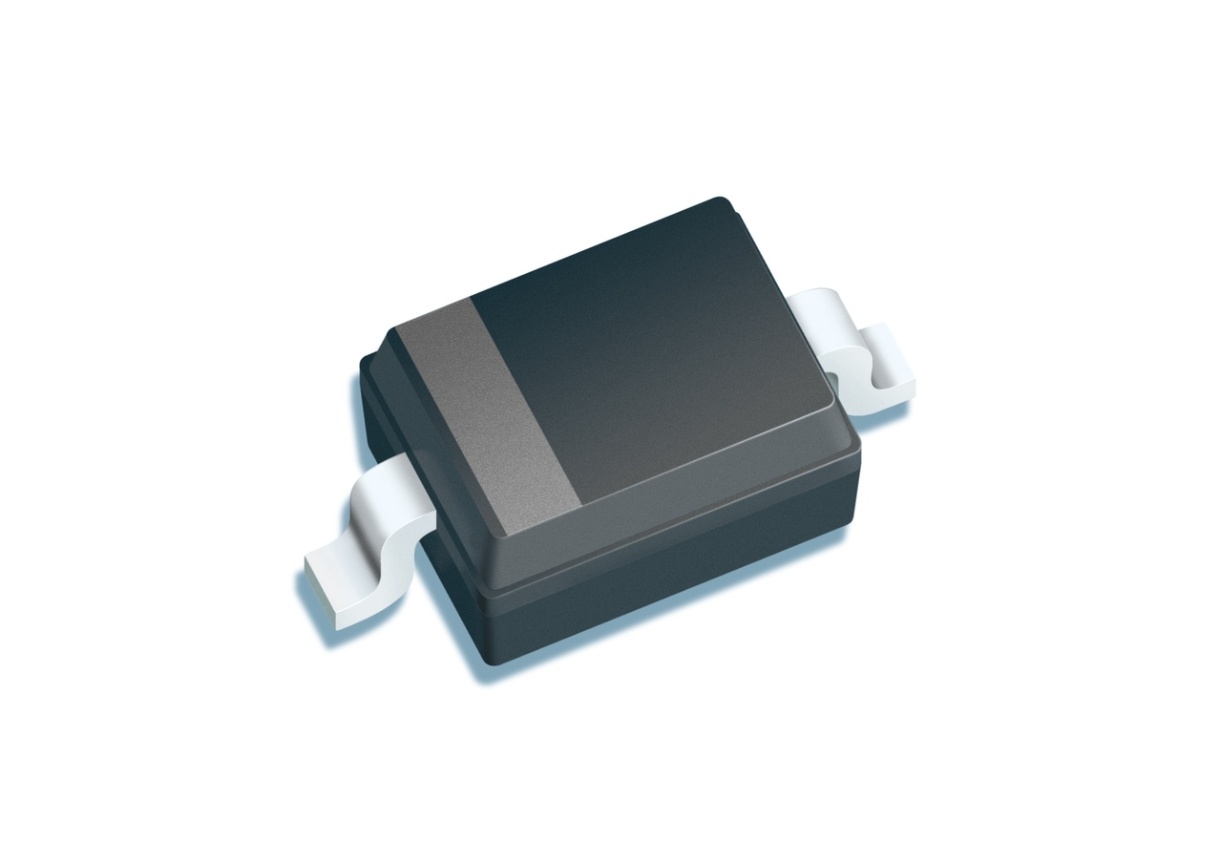

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BAT6804WH6327XTSA1
Manufacturer

Infineon
ChipWorker Part#

CW3945900
Category

Schottky Diode
Package

SOT-323-3
Description

Diode Schottky 8V 0.13A 3Pin SOT-323 T/R
Documentation

Datasheet

BAT6804WH6327XTSA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BAT6804WH6327XTSA1 Specifications

Attribute	Attribute Value

Part Number	BAT6804WH6327XTSA1
Manufacturer	Infineon
ChipWorker Part#	CW3945900
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-323-3
Load Current	0.13 A
Number of Positions	3 Position
Forward Voltage	0.5 V
Power Dissipation	150 mW
Forward Current	130 mA
Maximum Forward Voltage (Max)	500 mV
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150 mW
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Summary of Features:
For mixer applications in the VHF / UHF range
For high-speed switching applications
Pb-free (RoHS compliant) package
