BC550B - Fairchild

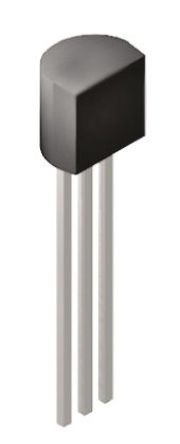

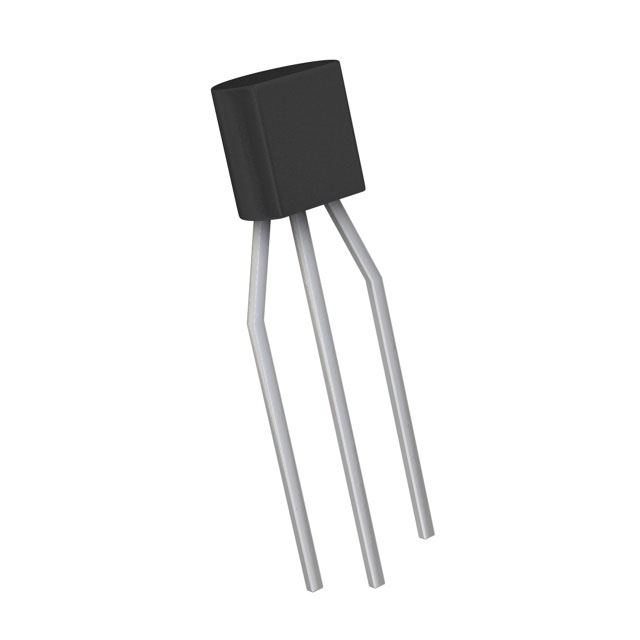

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BC550B
Manufacturer

Fairchild
ChipWorker Part#

CW199120689
Category

BJT Transistor, BJT
RoHS

Lead free / RoHS Compliant
Description

FAIRCHILD SEMICONDUCTOR BC550B Bipolar (BJT) Single Transistor, NPN, 45V, 300MHz, 0.5W(1/2W), 100mA, 110 hFE
Documentation

Datasheet

BC550B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BC550B Specifications

Attribute	Attribute Value

Part Number	BC550B
Manufacturer	Fairchild
ChipWorker Part#	CW199120689
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Voltage Rating (DC)	45.0 V
Current Rating	100 mA
Polarity	NPN
Power Dissipation	500 mW
Breakdown Voltage (Collector to Emitter)	45 V
hFE Min	200 @2mA, 5V
Input Power (Max)	500 mW
DC Current Gain (hFE)	110
Operating Temperature (Max)	150 ℃
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
