BLM21PG331SN1D - muRata

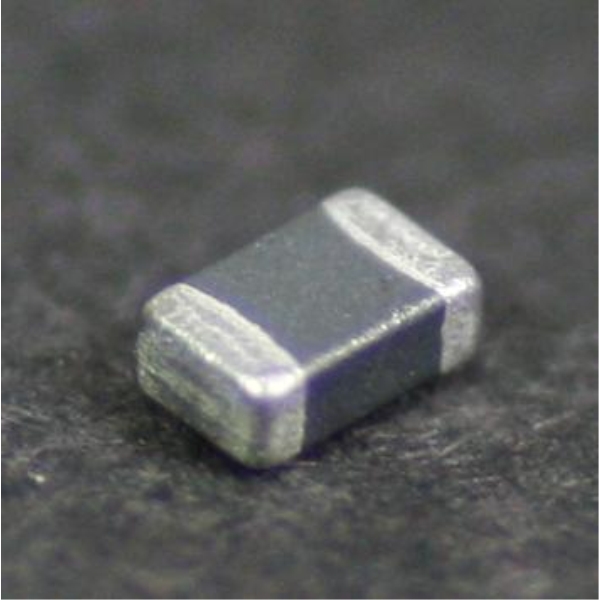

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoBLM21PG331SN1D
-
ManufacturermuRata
-
ChipWorker Part#CW49212
-
CategoryFerrite
-
Package0805
-
Description330Ω Impedance Ferrite Bead 0805 (2012 Metric) Surface Mount Power Line 1.5A 1 Lines 70mOhm Max DCR -55℃ ~ 125℃
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
BLM21PG331SN1D Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
BLM21PG331SN1D Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | BLM21PG331SN1D |
| Manufacturer | muRata |
| ChipWorker Part# | CW49212 |
| Category | Ferrite |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Current Rating | 1.5 A |
| Number of Circuits | 1 Circuit |
| Resistance | 90.0 mΩ |
| Shielding | No |
| Impedance | 330 Ω |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | 90 mΩ |
| Current Rating (Max) | 1.5 A |
| Current Rating (DC) | 1.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Accuracy | ±25 % |
| Resistance (DC Max) | 0.07 Ω |
| expand all | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.85 mm |
| Material | Ferrite |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 4000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
Product Description
- The Murata BLM21PG series are EMIFIL chip ferrite beads for suppressing high frequency noise in power line application. These chip ferrite beads are designed for reducing the possibility of resonance to provide undistorted signal waveform. EMIFIL chip ferrite beads do not require connection to ground so they are effectively used in circuits without stable ground lines. The nickel barrier structure of the external electrodes provides excellent solder heat resistance. BLM21PG series can be used in high current circuits due to its low DC resistance and can match power lines to a maximum of 6A DC.
- EIA 0805 standard chip size
- Miniaturized ferrite beads
- Effective at low impedance line
- Available in selective impedance range values at 100MHz
- Operating temperature range -55°C to 125°C
