BSC028N06NS - Infineon

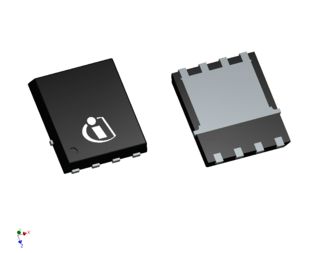

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSC028N06NS
Manufacturer

Infineon
ChipWorker Part#

CW4992671
Category

MOSFET, MOSFET Transistor
Package

PG-TDSON-8
Description

TDSON N-CH 60V 100A
Documentation

Datasheet

BSC028N06NS Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSC028N06NS Specifications

Attribute	Attribute Value

Part Number	BSC028N06NS
Manufacturer	Infineon
ChipWorker Part#	CW4992671
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-TDSON-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0025 Ω
Polarity	N-Channel
Power Dissipation	83 W
Threshold Voltage	2.8 V
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	100A
Rise Time	38 ns
Input Capacitance (Ciss)	2700pF @30V(Vds)
Input Power (Max)	2.5 W
Fall Time	8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta), 83W (Tc)
	expand all
Size-Length	5.9 mm
Size-Width	5.15 mm
Size-Height	1.27 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Summary of Features:
Optimized for synchronous rectification
40% lower R DS(on) than alternative devices
40% improvement of FOM over similar devices
RoHS compliant - halogen free
MSL1 rated
Benefits:
Highest system efficiency
Less paralleling required
Increased power density
System cost reduction
Very low voltage overshoot
