BSM150GB120DN2 - Infineon

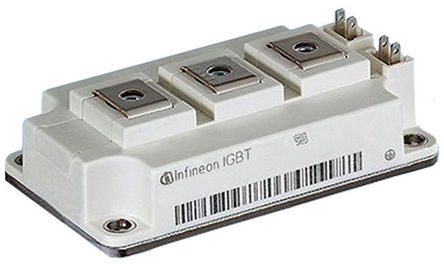

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSM150GB120DN2
Manufacturer

Infineon
ChipWorker Part#

CW126467200
Category

IGBT Transistor, IGBT Module
Package

62MM-1
Description

Trans IGBT Module N-CH 1.2kV 210A 7Pin 62MM
Documentation

Datasheet

BSM150GB120DN2 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSM150GB120DN2 Specifications

Attribute	Attribute Value

Part Number	BSM150GB120DN2
Manufacturer	Infineon
ChipWorker Part#	CW126467200
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Screw
Number of Pins	7 Pin
Case/Package	62MM-1
Power Dissipation	1.25 kW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1.25 kW
	expand all
Size-Length	106.4 mm
Size-Width	61.4 mm
Size-Height	30 mm
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
