BSS83 - NXP

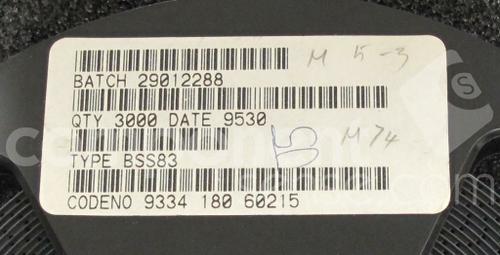

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSS83
Manufacturer

NXP
ChipWorker Part#

CW171482596
Category

MOSFET, MOSFET Transistor
Package

SOT-143
Description

SOT-143B N-CH 10V 0.05A
Documentation

Datasheet

BSS83 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSS83 Specifications

Attribute	Attribute Value

Part Number	BSS83
Manufacturer	NXP
ChipWorker Part#	CW171482596
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-143
Number of Positions	4 Position
Drain to Source Resistance (on) (Rds)	45 Ω
Polarity	N-Channel
Power Dissipation	230 mW
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	10 V
Continuous Drain Current (Ids)	50.0 mA
Operating Temperature (Max)	125 ℃
	expand all
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC

Product Description

MOSFET N-channel enhancement switching transistor Symmetrical insulated-gate silicon MOS field-effect transistor of the N-channel enhancement mode type. The transistor is sealed in a SOT143 envelope and features a low ON resistance and low capacitances. The transistor is protected against excessive input voltages by integrated back-to-back diodes between gate and substrate.
