BSS84PH6433XTMA1 - Infineon

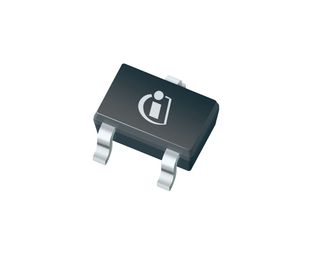

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSS84PH6433XTMA1
Manufacturer

Infineon
ChipWorker Part#

CW7389471
Category

MOSFET, MOSFET Transistor
Package

SOT-23-3
Description

SOT-23P-CH 60V 0.17A
Documentation

Datasheet

BSS84PH6433XTMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSS84PH6433XTMA1 Specifications

Attribute	Attribute Value

Part Number	BSS84PH6433XTMA1
Manufacturer	Infineon
ChipWorker Part#	CW7389471
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	5.8 Ω
Polarity	P-CH
Power Dissipation	360 mW
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	0.17A
Rise Time	16.2 ns
Input Capacitance (Ciss)	19pF @25V(Vds)
Input Power (Max)	360 mW
Fall Time	20.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	360mW (Ta)
	expand all
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status

Product Description

BSS84P H6433 , SP000924084
