BUL1203E - ST Microelectronics

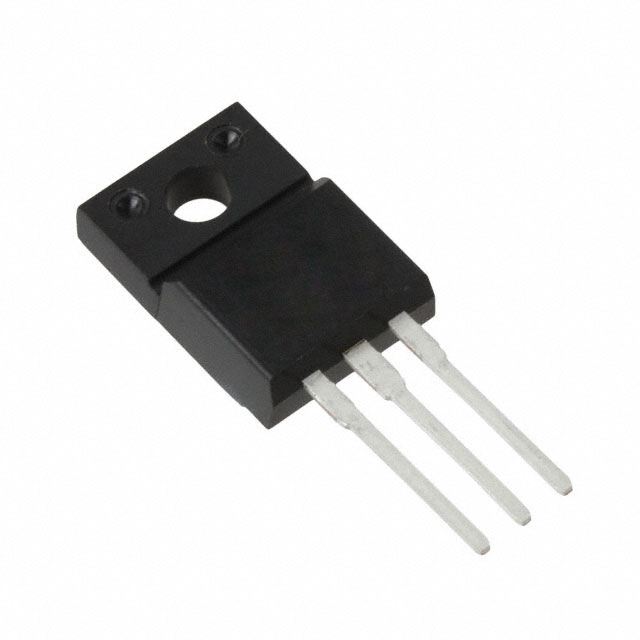

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BUL1203E
Manufacturer

ST Microelectronics
ChipWorker Part#

CW50033700
Category

BJT Transistor, BJT
Package

TO-220-3
Description

TO-220 NPN 550V 5A
Documentation

Datasheet

BUL1203E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BUL1203E Specifications

Attribute	Attribute Value

Part Number	BUL1203E
Manufacturer	ST Microelectronics
ChipWorker Part#	CW50033700
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Polarity	NPN
Power Dissipation	100 W
Breakdown Voltage (Collector to Emitter)	550 V
Continuous Collector Current	5A
hFE Min	9 @2A, 5V
Input Power (Max)	100 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	100000 mW
	expand all
Size-Width	4.6 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

• Typical application (220V mains unless otherwise specified)
• Integrated antisaturation and protection network
• According to tube impedance
120V AC mains
277V AC mains
340V AC mains
As PFC 220V AC mains
Suffix D = Integrated free-wheeling diode
ST preferred products in bold
Devices in green to be used in pairs
