C016 30G006 100 12 - Amphenol

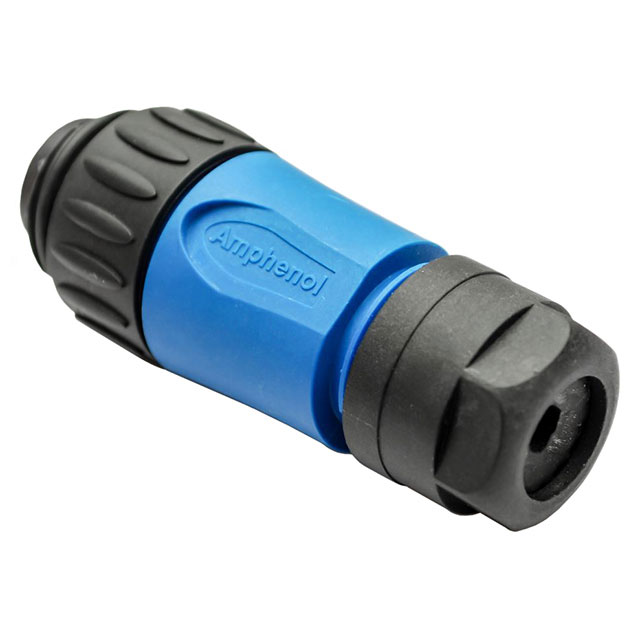

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoC016 30G006 100 12
-
ManufacturerAmphenol
-
ChipWorker Part#CW8781959
-
CategoryCircular Connector, Connector Circular
-
DescriptionConn Circular F 7POS Solder ST Panel Mount 7 Terminal 1Port
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
C016 30G006 100 12 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
C016 30G006 100 12 Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | C016 30G006 100 12 |
| Manufacturer | Amphenol |
| ChipWorker Part# | CW8781959 |
| Category | Circular Connector, Connector Circular |
| Documentation | Datasheet |
| Mounting Style | Solder, Panel |
| Number of Pins | 7 Pin |
| Number of Contacts | 6 Contact |
| Gender | Female |
| Wire Gauge | 20.0 AWG |
| Contact Plating | Silver |
| Current Rating | 10 A |
| Insulation Resistance | 10 MΩ |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 7 Position |
| Contact Resistance | 5 mΩ |
| Number of Mating Cycles | 500 Cycle |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 250 V |
| expand all | |
| Size-Length | 32 mm |
| Size-Width | 38 mm |
| Size-Height | 29 mm |
| Color | Black |
| Contact Material | Copper Alloy |
| Insulation Material | Plastic |
| Operating Temperature | -40℃ ~ 125℃ |
| Housing Material | Nylon 6/6 |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
Product Description
- The C016 30G006 100 12 from Amphenol is an ecomate circular female receptacle connector with 6 + PE contacts. The ecomate series provide easy operation, reduced dimensions, robust design. quick and easy assembly. This connector"s main area of application is in the field of plant construction and machine building. It is used for measuring and controlling applications as well as for power supply technology. This ergonomically designed connectors are approved by UL E63093, CSA 48932, VDE 1781/1780, SEV 00.0394 standards and designed for safe handling.
- Solder termination
- Silver plated contacts
- Rated voltage of 250V according to DIN EN 60664-1/IEC 60664-1 standard
- Contact resistance is less than or equal to 5mohm according to DIN EN 60512-2/IEC 60512-2 (test 2a)
- Current carrying capacity of 10A at 55°C according to DIN EN 60512-3/IEC 60512-2 (test 5b)
- Operating temperature range from -40°C to 125°C
- IP67/IP65 degree of protection in accordance with DIN EN 60529/IEC 60529 standard
- Black colour polyamide (PA6/PA6.6) housing
- Maximum wire gauge of 0.75mm²
- UL94 V-0 flammability
