C1206C102KCRACTU - KEMET Corporation

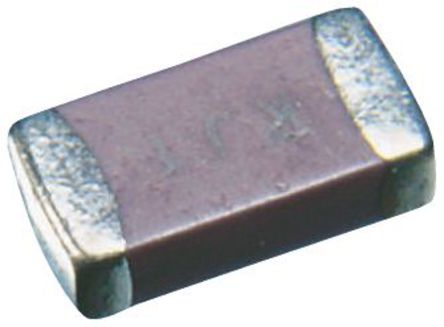

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

C1206C102KCRACTU
Manufacturer

KEMET Corporation
ChipWorker Part#

CW11393763
Category

Ceramic Capacitor
Package

1206
Description

Ceramic Capacitor, Multilayer, Ceramic, 500V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT
Documentation

Datasheet

C1206C102KCRACTU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

C1206C102KCRACTU Specifications

Attribute	Attribute Value

Part Number	C1206C102KCRACTU
Manufacturer	KEMET Corporation
ChipWorker Part#	CW11393763
Category	Ceramic Capacitor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	3216
Case/Package	1206
Voltage Rating (DC)	500 V
Operating Voltage	500 V
Insulation Resistance	100 GΩ
Capacitance	1000 pF
Capacitance Tolerance	±10 %
Dielectric Characteristic	X7R
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	500 V
	expand all
Size-Length	3.2 mm
Size-Width	1.6 mm
Size-Height	1 mm
Dielectric Material	Ceramic
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	R
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

KEMET"s High Voltage Surface Mount Capacitors are designed to withstand high voltage
applications. They offer high capacitance with low leakage current and low ESR at high
frequency. The capacitors have pure tin(Sn) plated external electrodes for good solderability.
X7R dielectrics are not designed for AC line filteringapplications. An insulating coating may be
required to prevent surface arcing. These components are RoHS
APPLICATIONS:
* Switch Mode Power Supply
* Input Filter
* Resonators
* Tank Circuit
* Snubber Circuit
* Output Filter
* High Voltage Coupling
* High Voltage DC Blocking
* Lighting Ballast
* Voltage Multiplier Circuits
* Coupling Capacitor/CUK
