CP82C59A - Intersil

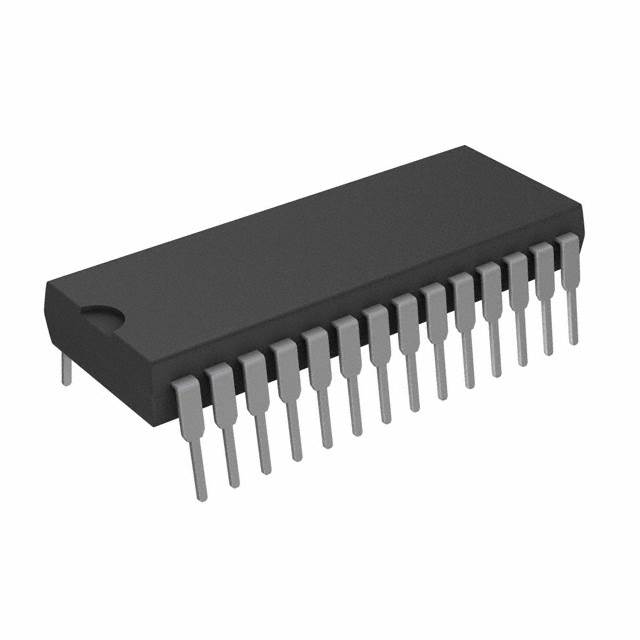

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CP82C59A
Manufacturer

Intersil
ChipWorker Part#

CW105897559
Category

Interface IC, Interface Controller
Package

DIP-28
Description

Interrupt Controller 5V 28Pin PDIP
Documentation

Datasheet

CP82C59A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CP82C59A Specifications

Attribute	Attribute Value

Part Number	CP82C59A
Manufacturer	Intersil
ChipWorker Part#	CW105897559
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	DIP-28
Supply Voltage (DC)	4.50V (min)
Supply Current	1.00 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

The Intersil 82C59A is a high performance CMOS Priority Interrupt Controller manufactured using an advanced 2µm CMOS process. The 82C59A is designed to relieve the system CPU from the task of polling in a multilevel priority system. The high speed and industry standard configuration of the 82C59A make it compatible with microprocessors such as 80C286, 80286, 80C86/88, 8086/88, 8080/85 and NSC800.
Features
• Pb-Free Plus Anneal Available (RoHS Compliant)
• 12.5MHz, 8MHz and 5MHz Versions Available
• High Speed, “No Wait-State” Operation with 12.5MHz 80C286 and 8MHz 80C86/88
• Pin Compatible with NMOS 8259A
• 80C86/88/286 and 8080/85/86/88/286 Compatible
• Eight-Level Priority Controller, Expandable to 64 Levels
• Programmable Interrupt Modes
• Individual Request Mask Capability
• Fully Static Design
• Fully TTL Compatible
• Low Power Operation
\- ICCSB. . . . . . . . . . . . . . . . . . . . . . . . . . 10µA Maximum
\- ICCOP . . . . . . . . . . . . . . . . . . . . . .1mA/MHz Maximum
• Single 5V Power Supply
• Commercial, Industrial and Military Operating Temperature Ranges Available
