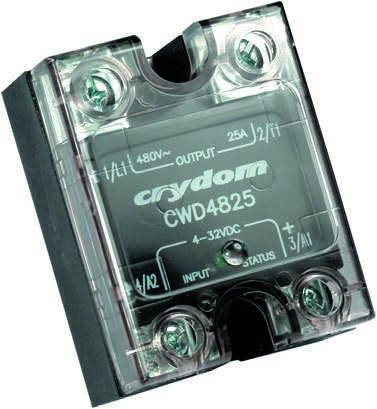

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CWD2425
Manufacturer

Crydom
ChipWorker Part#

CW8803565
Category

Solid State Relay
Package

Hockey Puck
Description

Relay SSR 10mA 32V DC-IN 25A 280V AC-OUT 4Pin
Documentation

Datasheet

CWD2425 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CWD2425 Specifications

Attribute	Attribute Value

Part Number	CWD2425
Manufacturer	Crydom
ChipWorker Part#	CW8803565
Category	Solid State Relay
Documentation	Datasheet
Mounting Style	Panel, Screw
Number of Pins	4 Pin
Case/Package	Hockey Puck
Current Rating	25 A
Insulation Resistance	1.00 GΩ
Output Voltage	24V ~ 280V
Output Current	25000 mA
Contacts Type	SPST-NO
Load Current	25 A
Input Current	10mA ~ 15mA
Power Dissipation	0.5 W
Isolation Voltage	4000 v
Input Voltage (Max)	32 V
Input Voltage (Min)	3 V
Output Voltage (Max)	280 V
Input Current (Min)	10 mA
Load Current (Max)	25 Arms
Load Current (Min)	0.15 A
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	280 VAC
Operating Voltage (Min)	24 Vrms
Operating Voltage (Max)	280 Vrms
Input Voltage	32 V
	expand all
Size-Length	45.7 mm
Size-Width	45.7 mm
Size-Height	33 mm
Contact Material	Silver Alloy
Operating Temperature	-40℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8536490080
ECCN Code	EAR99

Product Description

24 to 280 V (RMS) Operating Voltage, Panel Mount, SCR AC Output Solid-State Relays
* 600 V blocking
* Low leakage
* SCR output
* Zero and random voltage switching
* LED status indicator
* Intergrated removable fingerproof cover
* User friendly, universal connectors
* EMC Compliant design
* 600 V Blocking
* Low Leakage
* SCR Output
* Zero and Random Voltage Switching
* LED Status Indicator
* Panel Mount
* Integrated Removable Fingerproof Cover
* User Friendly, Universal Connectors
* EMC Compliant Design
* Single Pole
* Normally Open Output
