DAC7731EB - TI

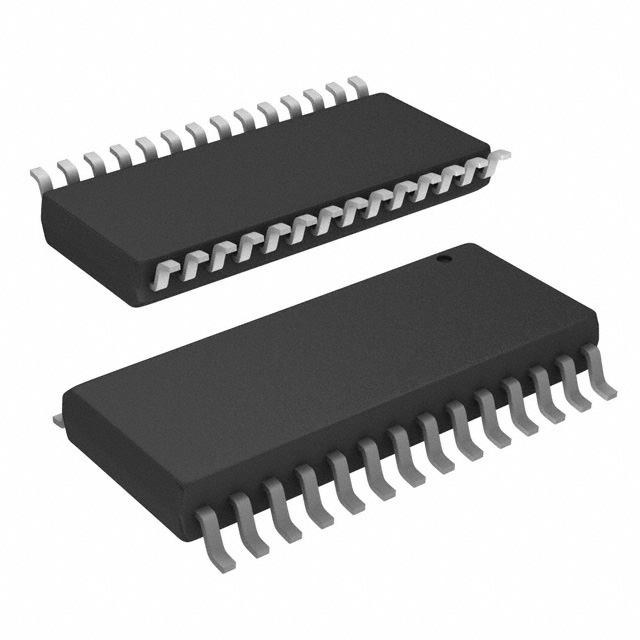

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoDAC7731EB
-
ManufacturerTI
-
ChipWorker Part#CW53816775
-
CategoryDigital to Analog, DAC IC
-
PackageSSOP-24
-
Description16Bit, Single Channel, Digital-to-Analog Converter W/ Internal +10V eference and Serial I/F 24-SSOP -40℃ to 85℃
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
DAC7731EB Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
DAC7731EB Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | DAC7731EB |
| Manufacturer | TI |
| ChipWorker Part# | CW53816775 |
| Category | Digital to Analog, DAC IC |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SSOP-24 |
| Number of Outputs | 1 Output |
| Supply Current | 4.00 mA |
| Number of Channels | 1 Channel |
| Number of Bits | 16 Bit |
| Power Dissipation | 0.15 W |
| Sample Rate | 172 µHz |
| Power Consumption | 100 mW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 150 mW |
| Number of DACs | 1 DAC |
| Supply Voltage (Max) | 5.25V, 15.75V |
| Supply Voltage (Min) | 4.75V, 11.4V |
| expand all | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
Product Description
- DESCRIPTION
- The DAC7731 is a 16-bit Digital-to-Analog Converter (DAC) which provides 16 bits of monotonic performance over the specified operating temperature range and offers a +10V internal reference. Designed for automatic test equipment and industrial process control applications, the DAC7731 output swing can be configured in a ±10V, ±5V, or +10V range.
- FEATURES
- ● LOW POWER: 150mW MAXIMUM
- ● +10V INTERNAL REFERENCE
- ● UNIPOLAR OR BIPOLAR OPERATION
- ● SETTLING TIME: 5µs to ±0.003% FSR
- ● 16-BIT MONOTONICITY, –40°C TO +85°C
- ● ±10V, ±5V, OR +10V CONFIGURABLE VOLTAGE OUTPUT
- ● RESET TO ZERO OR MID-SCALE
- ● DOUBLE-BUFFERED DATA INPUT
- ● DAISY-CHAIN FEATURE FOR MULTIPLE DAC7731s ON A SINGLE BUS
- ● SMALL SSOP-24 PACKAGE
- APPLICATIONS
- ● PROCESS CONTROL
- ● ATE PIN ELECTRONICS
- ● CLOSED-LOOP SERVO CONTROL
- ● MOTOR CONTROL
- ● DATA ACQUISITION SYSTEMS
