DAN222TL - ROHM Semiconductor

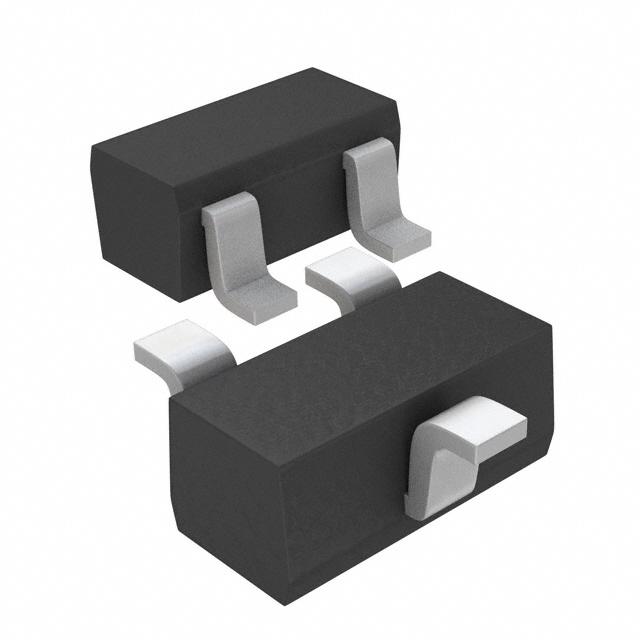

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DAN222TL
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW12989519
Category

Diode Array, TVS Diode Array
Package

SOT-416
Description

DIODE SWITCH 80V 100mA SOT-416
Documentation

Datasheet

DAN222TL Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DAN222TL Specifications

Attribute	Attribute Value

Part Number	DAN222TL
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW12989519
Category	Diode Array, TVS Diode Array
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-416
Voltage Rating (DC)	80.0 V
Current Rating	100 mA
Capacitance	3.50 pF
Forward Voltage	1.2V @100mA
Power Dissipation	150 mW
Reverse recovery time	4 ns
Forward Current	300 mA
Maximum Forward Voltage (Max)	1.2V @100mA
Forward Current (Max)	300 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	150 mW
	expand all
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.7 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Diode Array 1 Pair Common Cathode Standard 80V 100mA Surface Mount SC-75, SOT-416
