DF06M - Diodes

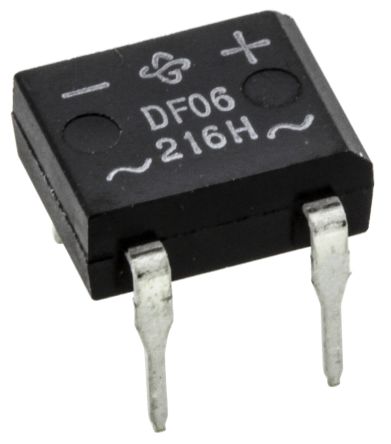

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DF06M
Manufacturer

Diodes
ChipWorker Part#

CW4314034
Category

Bridge Rectifier
Package

EDIP-4
Description

DF06M Series 1A 600V Bridge Rectifier Through Hole - DFM-4
Documentation

Datasheet

DF06M Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DF06M Specifications

Attribute	Attribute Value

Part Number	DF06M
Manufacturer	Diodes
ChipWorker Part#	CW4314034
Category	Bridge Rectifier
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	EDIP-4
Voltage Rating (DC)	600 V
Current Rating	1.00 A
Capacitance	25.0 pF
Output Current	≤1.00 A
Forward Voltage	1.1 V
Forward Current	1 A
Max Forward Surge Current (Ifsm)	50 A
Forward Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Length	8.51 mm
Size-Width	6.48 mm
Size-Height	3.3 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

If you want to convert an alternating current input into a direct current, then this DF06M full bridge rectifier from Diodes Zetex is perfect for you! In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This rectifier has an operating temperature range of -65 °C to 150 °C. It is made in a single configuration.
