DG211CJ - Maxim Integrated

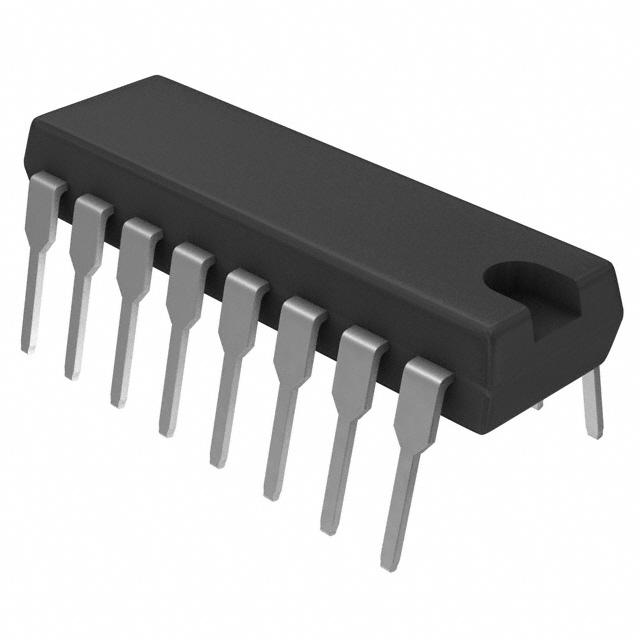

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DG211CJ
Manufacturer

Maxim Integrated
ChipWorker Part#

CW109816696
Category

Interface IC, Interface Controller
Package

DIP-16
Description

SPST, 4 Func, 1Channel, CMOS, PDIP16, 0.3INCH, PLASTIC, MO-058AB, MS-001AA, DIP-16
Documentation

Datasheet

DG211CJ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DG211CJ Specifications

Attribute	Attribute Value

Part Number	DG211CJ
Manufacturer	Maxim Integrated
ChipWorker Part#	CW109816696
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Supply Voltage (DC)	25.0V (max)
Contacts Type	SPST
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Drain to Source Resistance (on) (Rds)	175 Ω
Number of Bits	4 Bit
Power Dissipation	842 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	expand all
Size-Length	19.43 mm
Size-Width	7.87 mm
Size-Height	4.45 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

4 Circuit IC Switch 1:1 175Ohm 16-PDIP
