DRC9114E0L - Panasonic

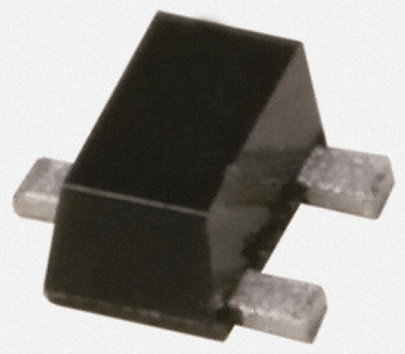

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DRC9114E0L
Manufacturer

Panasonic
ChipWorker Part#

CW66619063
Category

BJT Transistor, BJT
Package

SSMini3-F3-B
Description

SSMini3-F3-B NPN 50V 100mA
Documentation

Datasheet

DRC9114E0L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DRC9114E0L Specifications

Attribute	Attribute Value

Part Number	DRC9114E0L
Manufacturer	Panasonic
ChipWorker Part#	CW66619063
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SSMini3-F3-B
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	100mA
hFE Min	35 @5mA, 10V
Input Power (Max)	125 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Length	1.6 mm
Size-Height	0.65 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 125mW Surface Mount SSMini3-F3-B
