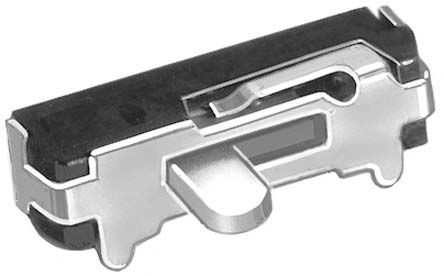

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ES01MSABE
Manufacturer

C&K Components
ChipWorker Part#

CW35287200
Category

Slide Switch, Switch Slide
Package

100
Description

Switch Slide ON None ON SPDT Side Slide 20VAC 20VDC 0.4VA 40000Cycle Gull Wing SMD T/R
Documentation

Datasheet

ES01MSABE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ES01MSABE Specifications

Attribute	Attribute Value

Part Number	ES01MSABE
Manufacturer	C&K Components
ChipWorker Part#	CW35287200
Category	Slide Switch, Switch Slide
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	100
Contact Plating	Gold over Nickel
Insulation Resistance	1000 MΩ
Number of Rows	1 Row
Orientation	Horizontal
Contacts Type	SPDT
Flammability Rating	UL 94 V-0
Contact Resistance	50 mΩ
Input Power (Max)	0.4 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (DC Max)	20 V
Voltage Rating (AC Max)	20 V
Maximum Contact Resistance (Max)	50 mΩ
	expand all
Size-Length	10.03 mm
Size-Height	6.65 mm
Contact Material	Bronze
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509050
ECCN Code	EAR99

Product Description

The ES series Sealed Tiny Slide Switch features process compatible internal O-ring and epoxy base seal. Available in thru-hole and surface mount models. The switch offers reliable contact design ensures long electrical life and robust actuator for easy actuation.
40000 Make-and-break mechanical and electrical life cycles at full load
10⁹R Minimum insulation resistance
500Vrms Minimum dielectric strength
IP57 Protection rating
UL94V-0 Flammability rated nylon housing and base
UL94V-0 Flammability rated black LCP actuator
Stainless steel with tin-plated surface plate
Bronze with gold-plate over nickel plate movable contact
Copper alloy, with gold plate over nickel plate stationary contacts
Copper alloy, with gold over nickel plate terminals
