FDMS8558S - Fairchild

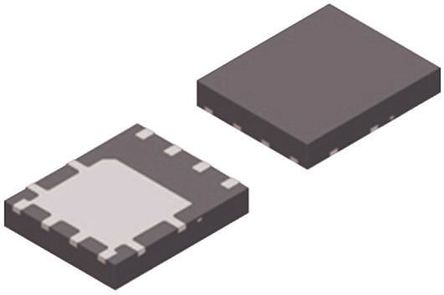

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FDMS8558S
Manufacturer

Fairchild
ChipWorker Part#

CW135722936
Category

MOSFET, MOSFET Transistor
Package

Power-56-8
Description

Trans MOSFET N-CH 25V 38A 8Pin Power 56 T/R
Documentation

Datasheet

FDMS8558S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FDMS8558S Specifications

Attribute	Attribute Value

Part Number	FDMS8558S
Manufacturer	Fairchild
ChipWorker Part#	CW135722936
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	Power-56-8
Polarity	N-CH
Power Dissipation	2.5 W
Drain to Source Voltage (Vds)	25 V
Continuous Drain Current (Ids)	38A
Input Capacitance (Ciss)	5118pF @13V(Vds)
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	78 W
	expand all
Size-Length	5.1 mm
Size-Width	5.85 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 25V 33A (Ta), 90A (Tc) 2.5W (Ta), 78W (Tc) Surface Mount 8-PQFN (5x6)
