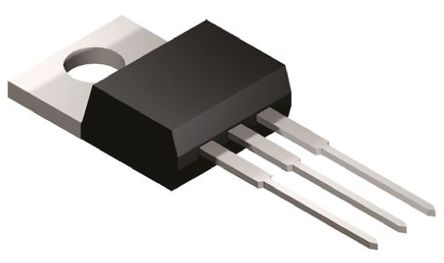

FDP150N10 ,MOSFET, MOSFET Transistor - Fairchild
The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
82 points
-
Part NoFDP150N10
-
ManufacturerFairchild
-
ChipWorker Part#CW60256411
-
CategoryMOSFET, MOSFET Transistor
-
PackageTO-220-3
-
DescriptionTrans MOSFET N-CH 100V 57A 3Pin(3+Tab) TO-220AB Rail
-
DocumentationDatasheet
-
Ships fromMoscow
-
НаличиеIn Stock
-
Estimated Price$ 1.2
Payment Methods and Delivery
{{ estimate }}
Buy FDP150N10
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
FDP150N10 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
FDP150N10 Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | FDP150N10 | |
| Manufacturer | Fairchild | |
| ChipWorker Part# | CW60256411 | |
| Category | MOSFET, MOSFET Transistor | |
| Documentation | Datasheet | |
| Mounting Style | Through Hole | |
| Number of Pins | 3 Pin | |
| Case/Package | TO-220-3 | |
| Number of Channels | 1 Channel | |
| Number of Positions | 3 Position | |
| Drain to Source Resistance (on) (Rds) | 0.012 Ω | |
| Polarity | N-Channel | |
| Power Dissipation | 110 W | |
| Threshold Voltage | 2.5 V | |
| Drain to Source Voltage (Vds) | 100 V | |
| Breakdown Voltage (Drain to Source) | 100 V | |
| Continuous Drain Current (Ids) | 57A | |
| Rise Time | 164 ns | |
| Input Capacitance (Ciss) | 4760pF @25V(Vds) | |
| Input Power (Max) | 110 W | |
| Fall Time | 83 ns | |
| Operating Temperature (Max) | 150 ℃ | |
| Operating Temperature (Min) | -55 ℃ | |
| Power Dissipation (Max) | 110W (Tc) | |
| expand all | ||
| Size-Length | 10.67 mm | |
| Size-Width | 4.83 mm | |
| Size-Height | 16.51 mm | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) | |
| Product Lifecycle Status | Active | |
| Packaging | Tube | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| REACH SVHC Compliance | No SVHC | |
| REACH SVHC Compliance Edition | 2015/06/15 |
Similar & Replacement Parts
Similar products
Product Description
- The FDP150N10 is a N-channel MOSFET produced using Fairchild Semiconductor"s advanced PowerTrench® process. It has been tailored to minimize the ON-state resistance while maintaining superior switching performance. It is suitable for use in synchronous rectification for ATX/server/telecom PSU, battery protection circuit and uninterruptible power supplies.
- Fast switching speed
- Low gate charge
- High performance Trench technology for extremely low RDS (ON)
- High power and current handling capability
