FDS6692A - Fairchild

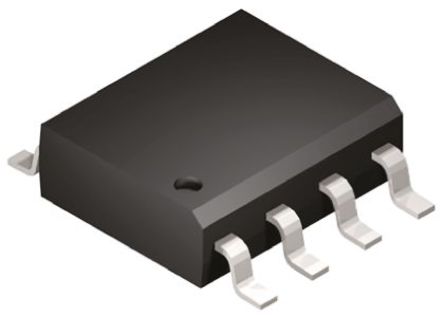

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FDS6692A
Manufacturer

Fairchild
ChipWorker Part#

CW78293766
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

Trans MOSFET N-CH 30V 9A 8Pin SOIC N T/R
Documentation

Datasheet

FDS6692A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FDS6692A Specifications

Attribute	Attribute Value

Part Number	FDS6692A
Manufacturer	Fairchild
ChipWorker Part#	CW78293766
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0082 Ω
Polarity	N-Channel
Power Dissipation	1.47 W
Threshold Voltage	1.2 V
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	9.00 A
Rise Time	32 ns
Input Capacitance (Ciss)	1610pF @15V(Vds)
Input Power (Max)	1.47 W
Fall Time	13 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.47W (Ta)
	expand all
Size-Length	4.9 mm
Size-Width	3.9 mm
Size-Height	1.575 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The FDS6692A is a N-channel MOSFET produced using PowerTrench® process. It is designed specifically to improve the overall efficiency of DC-to-DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS (ON) and fast switching speed.
