FQPF27P06 - Fairchild

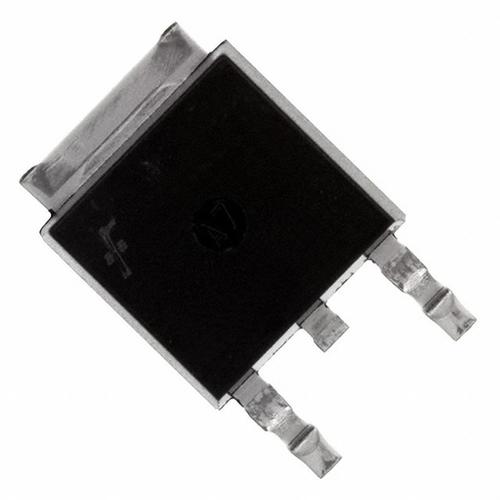

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoFQPF27P06
-
ManufacturerFairchild
-
ChipWorker Part#CW14238044
-
CategoryMOSFET, MOSFET Transistor
-
PackageTO-220-3
-
DescriptionTrans MOSFET P-CH 60V 17A 3Pin(3+Tab) TO-220F Tube
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
FQPF27P06 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
FQPF27P06 Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | FQPF27P06 |
| Manufacturer | Fairchild |
| ChipWorker Part# | CW14238044 |
| Category | MOSFET, MOSFET Transistor |
| Documentation | Datasheet |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | -60.0 V |
| Current Rating | -17.0 A |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.055 Ω |
| Polarity | P-Channel |
| Power Dissipation | 47 W |
| Drain to Source Voltage (Vds) | 60 V |
| Breakdown Voltage (Gate to Source) | ±25.0 V |
| Continuous Drain Current (Ids) | 17.0 A |
| Rise Time | 185 ns |
| Input Capacitance (Ciss) | 1400pF @25V(Vds) |
| Input Power (Max) | 47 W |
| Fall Time | 90 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 47W (Tc) |
| expand all | |
| Size-Length | 10.67 mm |
| Size-Width | 4.7 mm |
| Size-Height | 16.3 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
Product Description
- The FQPF27P06 is a -60V P-channel QFET® enhancement mode Power MOSFET is produced using Fairchild Semiconductor"s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance and to provide superior switching performance and high avalanche energy strength. This product is general usage and suitable for many different applications.
- Low gate charge
- 100% Avalanche tested
- Improved system reliability in PFC and soft switching topologies
- Switching loss improvements
- Lower conduction loss
- 175°C Maximum junction temperature rating
