FSB649 - Fairchild

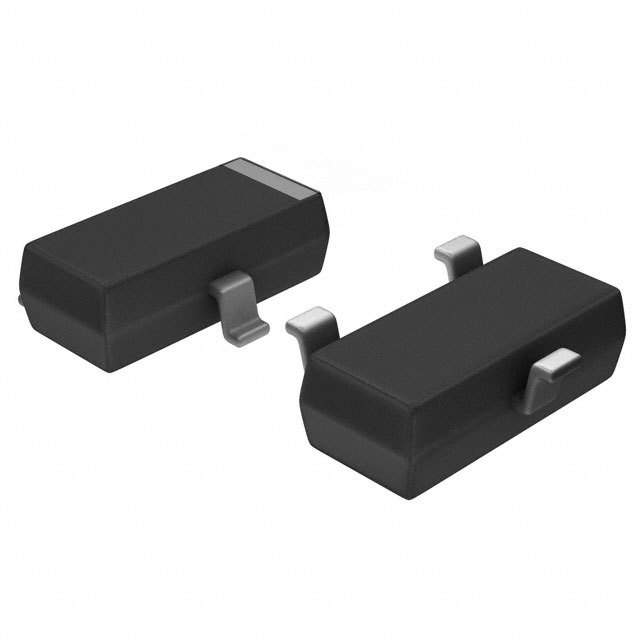

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FSB649
Manufacturer

Fairchild
ChipWorker Part#

CW59527729
Category

BJT Transistor, BJT
Package

SOT-23-3
Description

Trans GP BJT NPN 25V 3A 3Pin SuperSOT T/R
Documentation

Datasheet

FSB649 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FSB649 Specifications

Attribute	Attribute Value

Part Number	FSB649
Manufacturer	Fairchild
ChipWorker Part#	CW59527729
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	25.0 V
Current Rating	3.00 A
Polarity	NPN
Power Dissipation	0.5 W
Breakdown Voltage (Collector to Emitter)	25 V
Continuous Collector Current	3A
hFE Min	100 @1A, 2V
hFE Max	300
Input Power (Max)	500 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	expand all
Size-Height	0.94 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

NPN Low Saturation Transistor high current gain
