Part No

FSDM07652RBWDTU
Manufacturer

Fairchild
ChipWorker Part#

CW82794119
Category

AC to DC Converter, AC/DC Power Module
Package

TO-220-6
Description

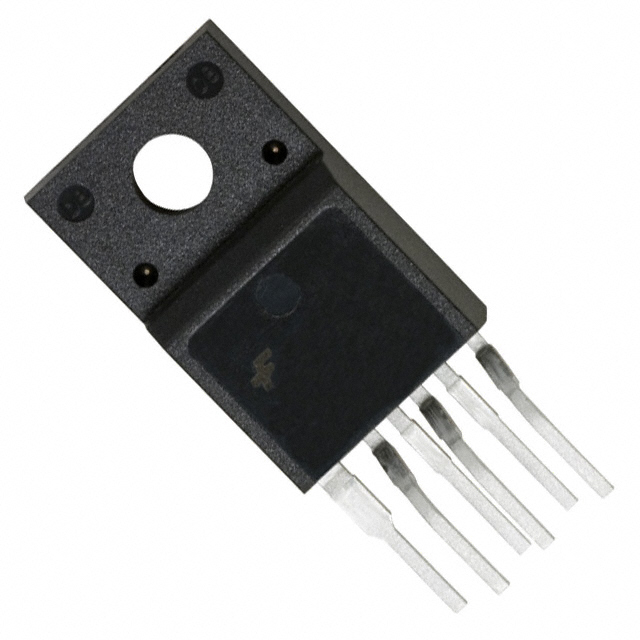

Power Switch 2.8A 6Pin(6+Tab) TO-220F Rail
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1

Buy FSDM07652RBWDTU

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

FSDM07652RBWDTU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

FSDM07652RBWDTU Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	FSDM07652RBWDTU
Manufacturer	Fairchild
ChipWorker Part#	CW82794119
Category	AC to DC Converter, AC/DC Power Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	TO-220-6
Frequency	67.0 GHz
Supply Voltage (DC)	650V (max)
Current Rating	2.50 A
Power Rating	80 W
Number of Outputs	1 Output
Output Voltage	650 V, 650 V (max)
Output Current	2.8 A
Breakdown Voltage	650 V
Supply Current	2.5 mA
Number of Positions	6 Position
Power Dissipation	45000 mW
Switching Frequency	66 kHz
Duty Cycle	80 %
Input Voltage (AC Max)	265 v
Input Voltage (AC Min)	85 v
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	45000 mW
Supply Voltage (Max)	20 V
Supply Voltage (Min)	0.3 V
Input Voltage	8V ~ 20V
	expand all
Size-Height	16.07 mm
Operating Temperature	-25℃ ~ 85℃ (TA)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Description
The FSDM0565RB is an integrated Pulse Width Modulator (PWM) and Sense FET specifically designed for high
performance offline Switch Mode Power Supplies (SMPS) with minimal external components. This device is an
integrated high voltage power switching regulator which combine an avalanche rugged Sense FET with a current mode PWM control block.
Features
• Internal Avalanche Rugged Sense FET
• Advanced Burst-Mode operation consumes under 1 W at 240VAC & 0.5W load
• Precision Fixed Operating Frequency (66kHz)
• Internal Start-up Circuit
• Improved Pulse by Pulse Current Limiting
• Over Voltage Protection (OVP)
• Over Load Protection (OLP)
• Internal Thermal Shutdown Function (TSD)
• Auto-Restart Mode
• Under Voltage Lock Out (UVLO) with hysteresis
• Low Operating Current (2.5mA)
• Built-in Soft Start
Application
• SMPS for LCD monitor and STB
• Adaptor

expand all
