IPT004N03LATMA1 - Infineon

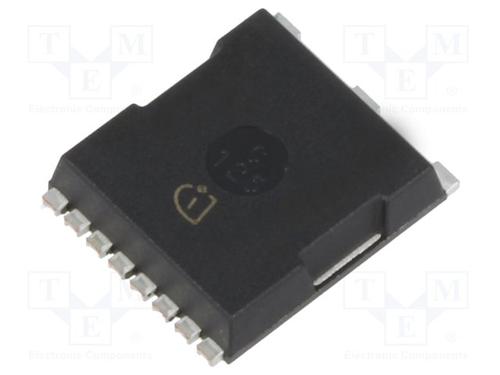

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPT004N03LATMA1
Manufacturer

Infineon
ChipWorker Part#

CW3058627
Category

MOSFET, MOSFET Transistor
Package

PG-HSOF-8-1
Description

HSOF N-CH 30V 300A
Documentation

Datasheet

IPT004N03LATMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPT004N03LATMA1 Specifications

Attribute	Attribute Value

Part Number	IPT004N03LATMA1
Manufacturer	Infineon
ChipWorker Part#	CW3058627
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-HSOF-8-1
Power Rating	300 W
Number of Positions	8 Position
Polarity	N-Channel
Power Dissipation	300 W
Threshold Voltage	2.2 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	300A
Rise Time	17 ns
Input Capacitance (Ciss)	24000pF @15V(Vds)
Fall Time	37 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3.8W (Ta), 300W (Tc)
	expand all
Size-Width	10.1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2015/12/17

Product Description

Summary of Features:
Industry‘s lowest R DS(on)
Highest current capability up to 300A
Very low package parasitics and inductances
Benefits:
Less paralleling and cooling required
Highest system reliability
System cost reduction
Enabling very compact design
