IQ0505SA - XP Power

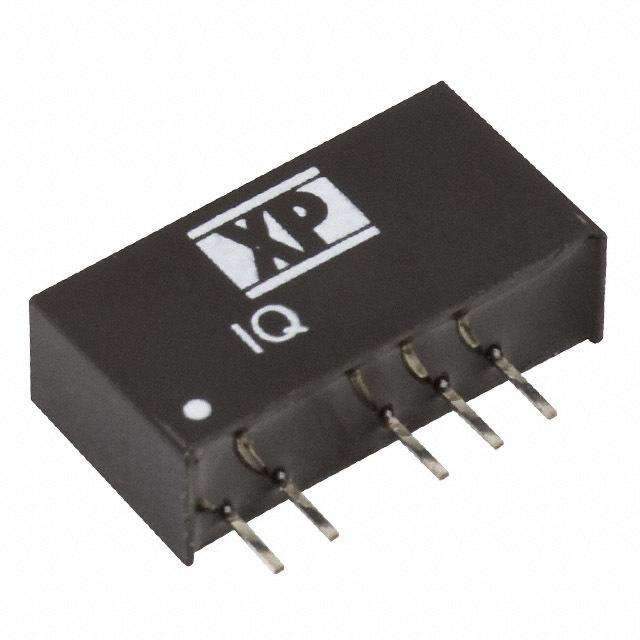

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IQ0505SA
Manufacturer

XP Power
ChipWorker Part#

CW85082710
Category

DC to DC Converter, DC/DC Converter
Package

SIP-7
Description

XP POWER IQ0505SA Isolated Board Mount DC-DC Converter, Semi Regulated, Fixed, 1 Output, 4.5V, 5.5V, 1W, 5V
Documentation

Datasheet

IQ0505SA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IQ0505SA Specifications

Attribute	Attribute Value

Part Number	IQ0505SA
Manufacturer	XP Power
ChipWorker Part#	CW85082710
Category	DC to DC Converter, DC/DC Converter
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	SIP-7
Supply Voltage (DC)	5.00 V
Power Rating	1 W
Number of Outputs	1 Output
Input Voltage (DC)	5.00 V
Output Voltage	5 VDC
Output Current	200 mA
Output Power	1 W
Isolation Voltage	1 kV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	5.5 V
Input Voltage (DC Min)	4.5 v
Output Current (Max)	200 mA
Input Power (Max)	1 W
Input Voltage	4.5VDC ~ 5.5VDC
	expand all
Size-Length	19.5 mm
Size-Width	6 mm
Size-Height	10 mm
Weight	2.8 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

* SIP Package
1000 VDC Isolation
Semi regulated
-40°C to +85°C Operation
MTBF >1.1 MHrs

expand all
