IRF1407PBF - Infineon

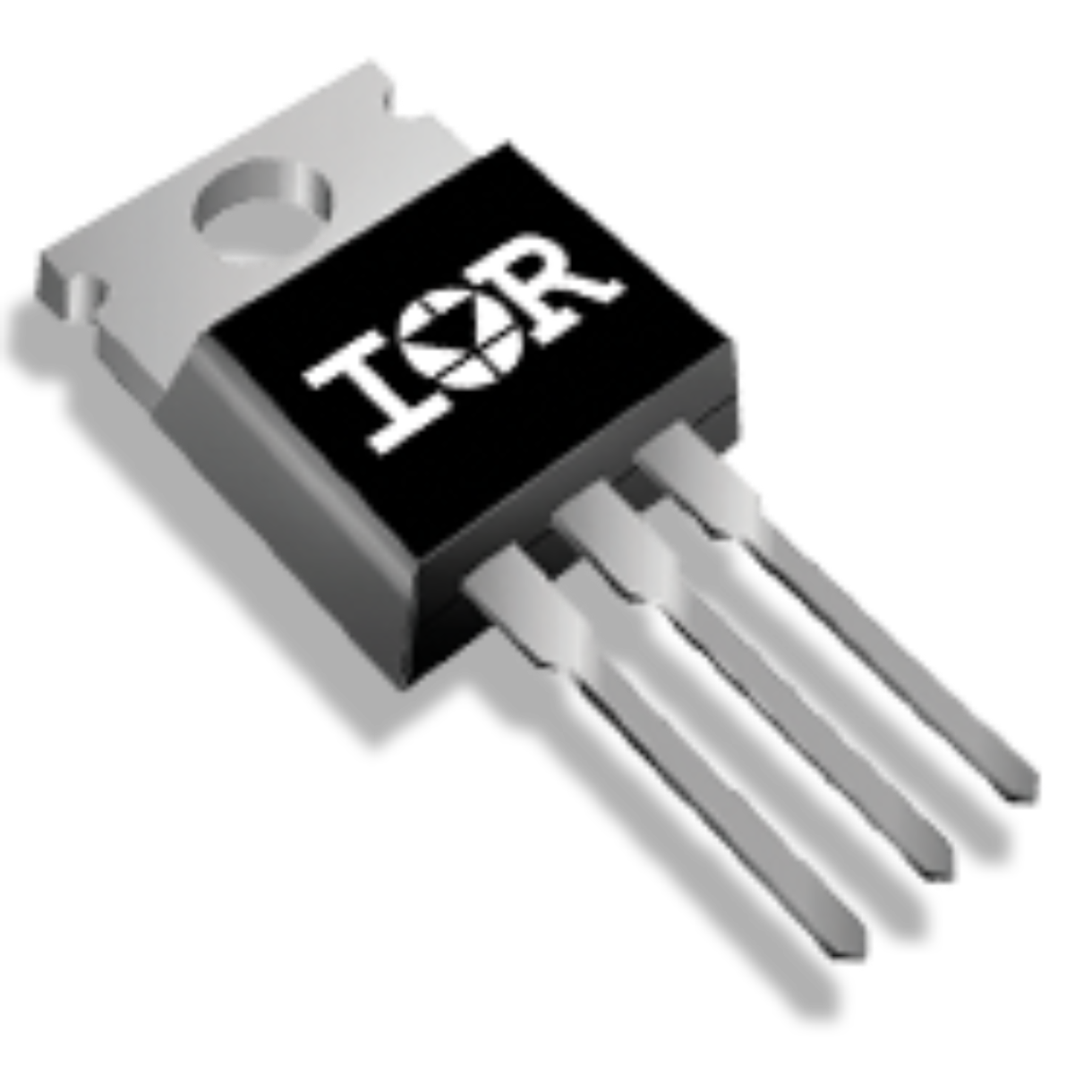

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF1407PBF
Manufacturer

Infineon
ChipWorker Part#

CW2260983
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220AB N-CH 80V 130A
Documentation

Datasheet

IRF1407PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF1407PBF Specifications

Attribute	Attribute Value

Part Number	IRF1407PBF
Manufacturer	Infineon
ChipWorker Part#	CW2260983
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Power Rating	330 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0078 Ω
Polarity	N-Channel
Power Dissipation	330 W
Threshold Voltage	4 V
Input Capacitance	5600pF @25V
Drain to Source Voltage (Vds)	75 V
Breakdown Voltage (Drain to Source)	75 V
Continuous Drain Current (Ids)	130A
Rise Time	150 ns
Input Capacitance (Ciss)	5600pF @25V(Vds)
Input Power (Max)	330 W
Fall Time	140 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	330W (Tc)
	expand all
Size-Length	10.67 mm
Size-Width	4.4 mm
Size-Height	15.65 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRF1407PBF is a HEXFET® single N-channel Power MOSFET utilizes the latest processing techniques to achieve extremely low ON-resistance per silicon area. Additional features of this HEXFET® power MOSFET are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These benefits combine to make this design an extremely efficient and reliable device for use in a wide variety of applications.
