IRF2805S - International Rectifier

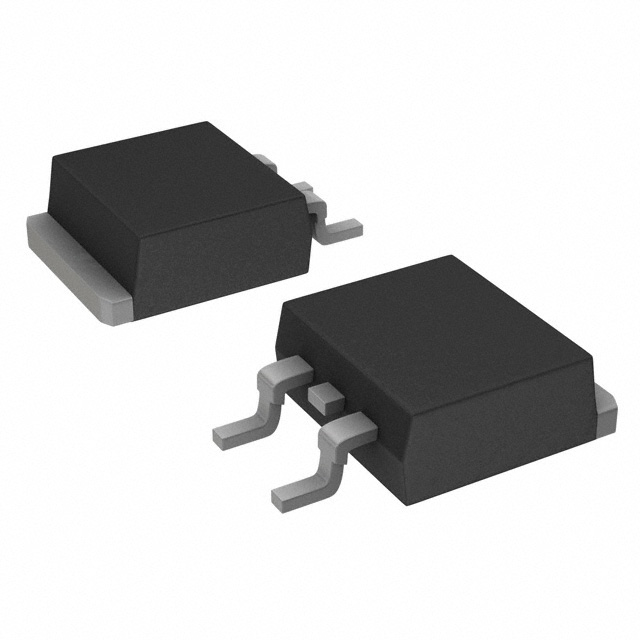

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF2805S
Manufacturer

International Rectifier
ChipWorker Part#

CW446514066
Package

D2PAK
Description

Trans MOSFET N-CH 55V 135A 3Pin(2+Tab) D2PAK
Documentation

Datasheet

IRF2805S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF2805S Specifications

Attribute	Attribute Value

Part Number	IRF2805S
Manufacturer	International Rectifier
ChipWorker Part#	CW446514066
Documentation	Datasheet
Number of Pins	3 Pin
Case/Package	D2PAK
Power Dissipation	200 W
Part Family	IRF2805S
	expand all
Product Lifecycle Status	Active

Product Description

Description
Specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this product are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating .
Features
Advanced Process Technology
Ultra Low On-Resistance
175°C Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Typical Applications
Climate Control
ABS
Electronic Braking
Windshield Wipers
