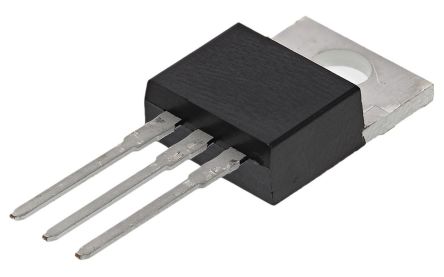

IRF540PBF ,MOSFET, MOSFET Transistor - VISHAY

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

168 points

Part No

IRF540PBF
Manufacturer

VISHAY
ChipWorker Part#

CW1998887
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220-3 N-CH 100V 28A 77mΩ
Documentation

Datasheet
Ships from

Moscow
Наличие

110 pcs In Stock
Estimated Price

$ 0.45

Buy IRF540PBF

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

IRF540PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

IRF540PBF Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	IRF540PBF
Manufacturer	VISHAY
ChipWorker Part#	CW1998887
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	100 V
Current Rating	28.0 A
Power Rating	150 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.077 Ω
Polarity	N-Channel
Power Dissipation	150 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	100 V
Breakdown Voltage (Drain to Source)	100 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	28.0 A
Rise Time	44 ns
Input Capacitance (Ciss)	1700pF @25V(Vds)
Input Power (Max)	150 W
Fall Time	43 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150 W
	expand all
Size-Length	10.41 mm
Size-Width	4.7 mm
Size-Height	9.01 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
Minimum Packing Quantity	50
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The IRF540PBF is a 100V N-channel Power MOSFET, third generation power MOSFET provides the designer with the best combination of fast switching, ruggedized device design and low on-resistance.
