IRF6614 ,MOSFET, MOSFET Transistor - International Rectifier

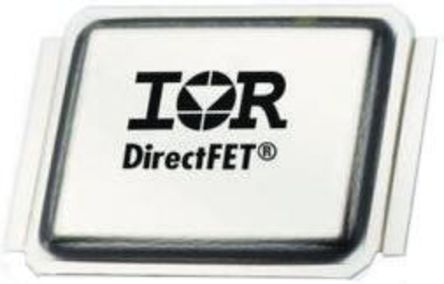

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

30 points

Part No

IRF6614
Manufacturer

International Rectifier
ChipWorker Part#

CW497809737
Category

MOSFET, MOSFET Transistor
Description

Trans MOSFET N-CH Si 40V 12.7A 7Pin Direct-FET ST
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy IRF6614

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

IRF6614 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

IRF6614 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	IRF6614
Manufacturer	International Rectifier
ChipWorker Part#	CW497809737
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Number of Pins	5 Pin
Drain to Source Resistance (on) (Rds)	5.90 Ω
Polarity	N-Channel
Power Dissipation	42.0 W
Part Family	IRF6614
Drain to Source Voltage (Vds)	40.0 V
Breakdown Voltage (Drain to Source)	40.0 V
Continuous Drain Current (Ids)	10.1 A
	expand all
Product Lifecycle Status	Active
RoHS	Non-Compliant

Similar & Replacement Parts

Similar products

International Rectifier

IRF6614TR1PBF

International Rectifier

1.62 $/шт.

Product Description

Description
The IRF6614 combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of a MICRO-8 and only 0.7 mm profile. The DirectFET packageis compatible with existing layout geometries used in power applications, PCB assembly equipment and vapor phase, infra-red or convection soldering techniques, when application note AN-1035 is followed regarding the manufacturing methods and processes. The DirectFET package allows dual sided cooling to maximize thermal transfer in power systems, improving previous best thermal resistance by 80%.
The IRF6614 balances both low resistance and low charge along with ultra low package inductance to reduce both conduction and switching losses. The reduced total losses make this product ideal for high efficiency DC-DC converters that power the latest generation of processors operating at higher frequencies. The IRF6614 has been optimized for parameters that are critical in synchronous buck operating from 12 volt buss converters including Rds(on) and gate charge to minimize losses in the control FET socket.
Application Specific MOSFETs
Lead and Bromide Free
Low Profile (<0.7 mm)
Dual Sided Cooling Compatible
Ultra Low Package Inductance
Optimized for High Frequency Switching above 1MHz
Ideal for CPU Core and Telecom Synchronous Rectification in DC-DC Converters
Optimized for Control FET socket of Sync. Buck Converter
Low Conduction Losses
Compatible with existing Surface Mount Techniques
