IRF7452 - International Rectifier

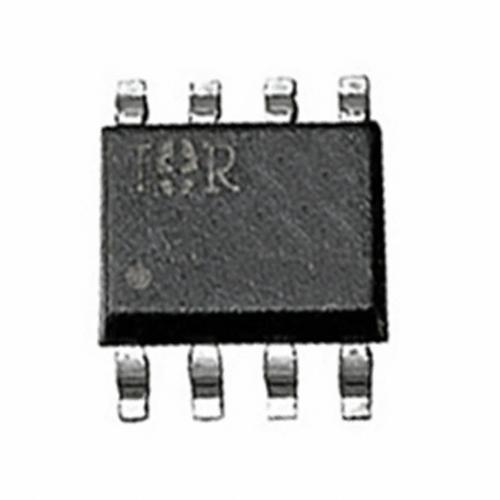

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF7452
Manufacturer

International Rectifier
ChipWorker Part#

CW807726436
Category

MOSFET, MOSFET Transistor
Description

MOSFET N-CH 100V 4.5A 8-SOIC
Documentation

Datasheet

IRF7452 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF7452 Specifications

Attribute	Attribute Value

Part Number	IRF7452
Manufacturer	International Rectifier
ChipWorker Part#	CW807726436
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC
Voltage Rating (DC)	100 V
Current Rating	4.50 A
Polarity	N-Channel
Power Dissipation	2.50 W
Part Family	IRF7452
Drain to Source Voltage (Vds)	100 V
Breakdown Voltage (Drain to Source)	100 V
Continuous Drain Current (Ids)	4.50 A
Rise Time	11.0 ns
	expand all
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
