IRFL024ZTRPBF - Infineon

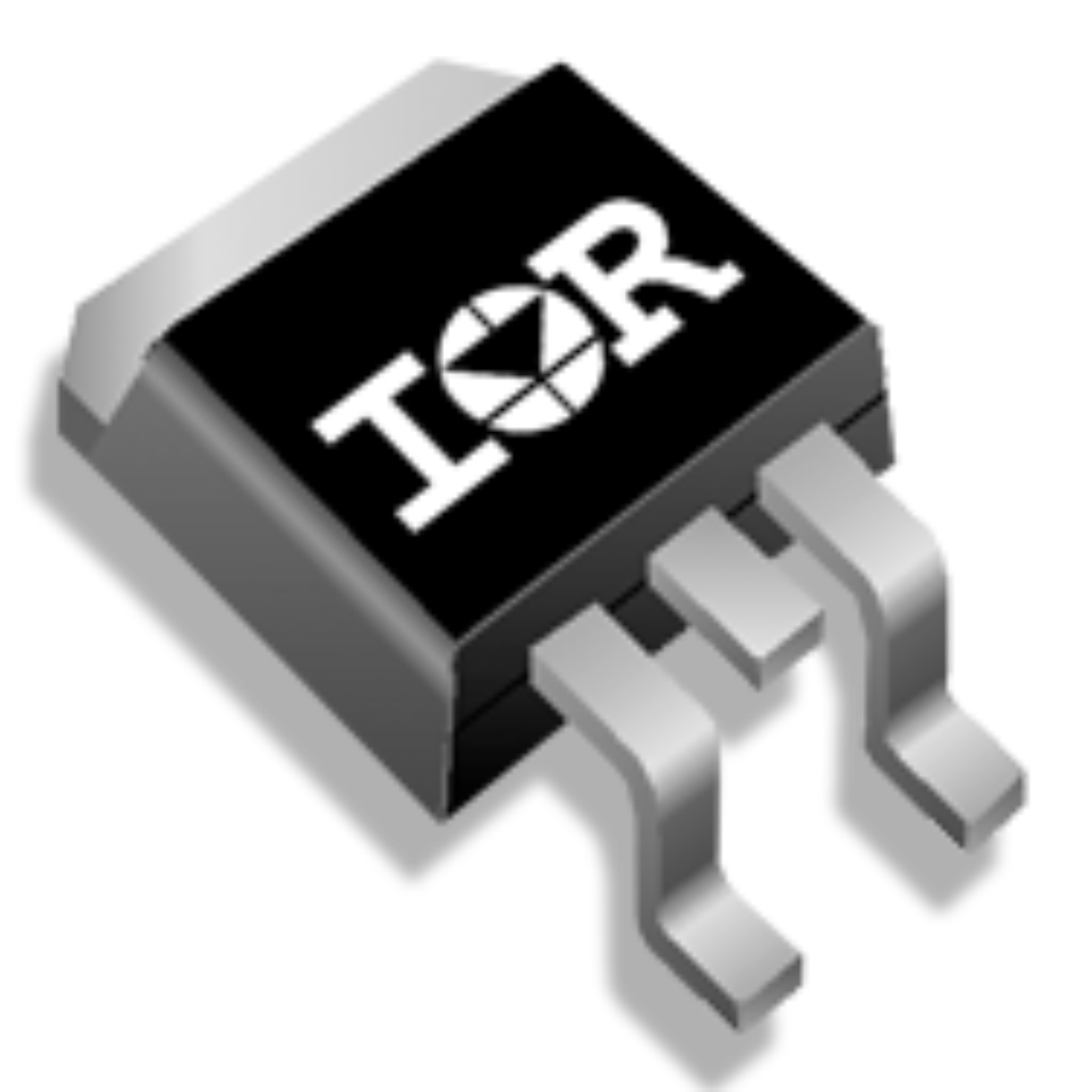

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFL024ZTRPBF
Manufacturer

Infineon
ChipWorker Part#

CW1810793
Category

MOSFET, MOSFET Transistor
Package

TO-261-4
Description

SOT-223 N-CH 55V 5.1A
Documentation

Datasheet

IRFL024ZTRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFL024ZTRPBF Specifications

Attribute	Attribute Value

Part Number	IRFL024ZTRPBF
Manufacturer	Infineon
ChipWorker Part#	CW1810793
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Power Rating	2.8 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0462 Ω
Polarity	N-Channel
Power Dissipation	2.8 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	55 V
Continuous Drain Current (Ids)	5.1A
Rise Time	21 ns
Input Capacitance (Ciss)	340pF @25V(Vds)
Input Power (Max)	1 W
Fall Time	23 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1W (Ta)
	expand all
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.8 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Benefits:
RoHS Compliant
Industry-leading quality
Fast Switching
175°C Operating Temperature

expand all
