IRFR220NTRPBF - Infineon

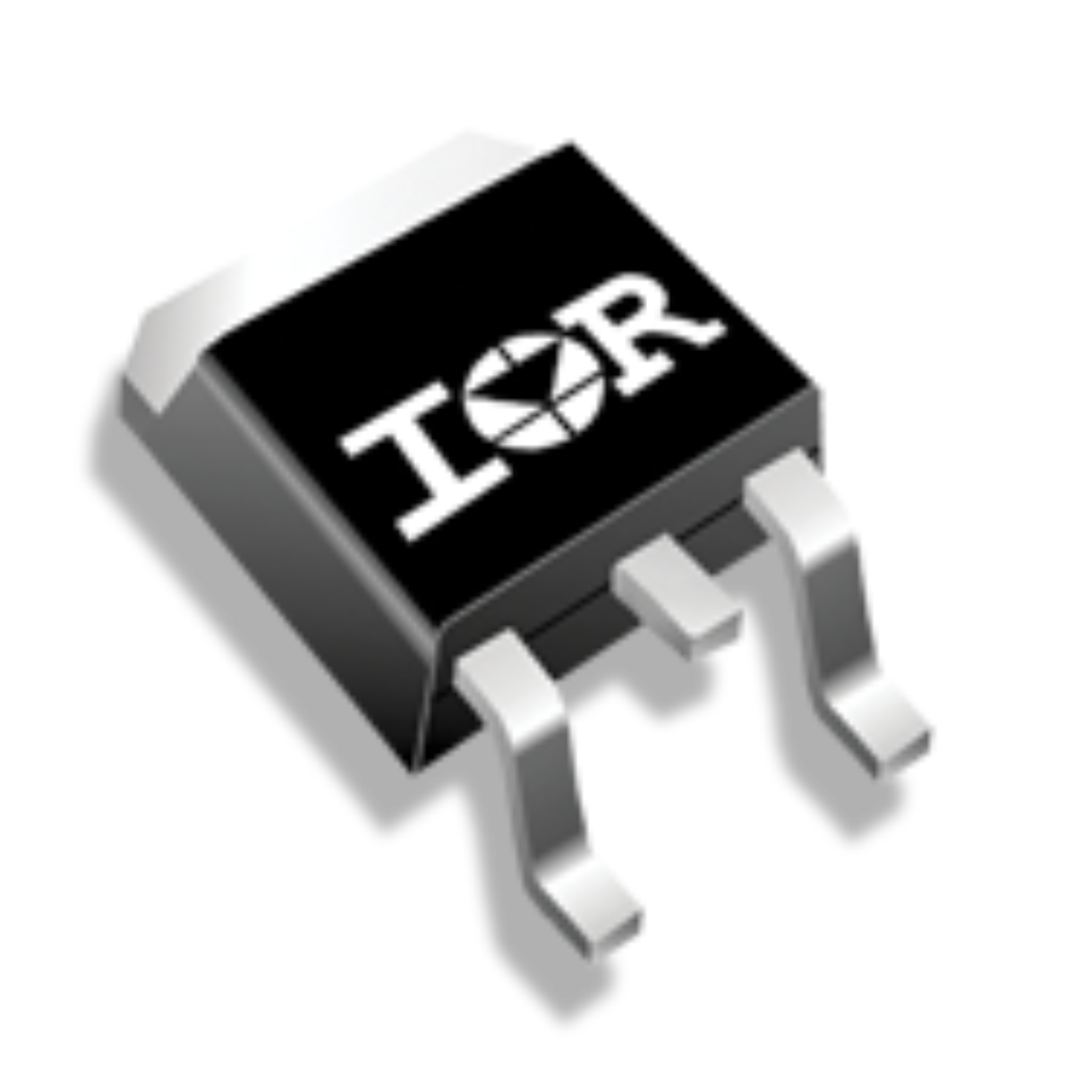

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFR220NTRPBF
Manufacturer

Infineon
ChipWorker Part#

CW1810661
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

DPAK N-CH 200V 5A
Documentation

Datasheet

IRFR220NTRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFR220NTRPBF Specifications

Attribute	Attribute Value

Part Number	IRFR220NTRPBF
Manufacturer	Infineon
ChipWorker Part#	CW1810661
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Power Rating	43 W
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.6 Ω
Polarity	N-CH
Power Dissipation	43 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	200 V
Breakdown Voltage (Drain to Source)	200 V
Continuous Drain Current (Ids)	5A
Rise Time	11 ns
Input Capacitance (Ciss)	300pF @25V(Vds)
Input Power (Max)	43 W
Fall Time	12 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	43W (Tc)
	expand all
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRFR220NTRPBF is a HEXFET® single N-channel Power MOSFET offers low gate-to-drain charge to reduce switching losses. It is suitable for high frequency DC-to-DC converters.
Fully characterized capacitance including effective COSS to simplify design
Fully characterized avalanche voltage and current
Low static drain-to-source ON-resistance
Dynamic dV/dt rating
