IRL640SPBF ,MOSFET, MOSFET Transistor - VISHAY

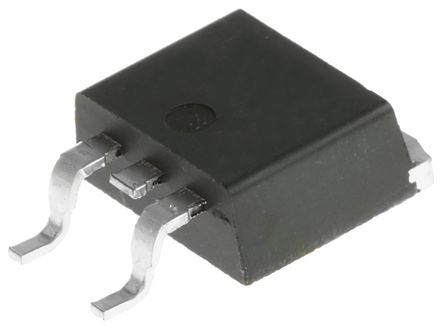

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

76 points

Part No

IRL640SPBF
Manufacturer

VISHAY
ChipWorker Part#

CW16026957
Category

MOSFET, MOSFET Transistor
Package

TO-263-3
Description

TO-252-3 N-CH 200V 17A 180mΩ
Documentation

Datasheet
Ships from

Moscow
Наличие

998 pcs In Stock
Estimated Price

$ 2.84

Buy IRL640SPBF

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

IRL640SPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

IRL640SPBF Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	IRL640SPBF
Manufacturer	VISHAY
ChipWorker Part#	CW16026957
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	180 mΩ
Polarity	N-Channel
Power Dissipation	125 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	200 V
Continuous Drain Current (Ids)	17.0 A
Rise Time	83 ns
Input Capacitance (Ciss)	1800pF @25V(Vds)
Input Power (Max)	3.1 W
Fall Time	52 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3.1 W
	expand all
Size-Length	10.67 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Product Lifecycle Status	Active
Packaging	Tube
Minimum Packing Quantity	2000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Product Description

The IRL640SPBF is a third generation N-channel enhancement-mode Power MOSFET comes with the best combination of fast switching, ruggedized device design and low ON-resistance. The package is surface-mount and capable of accommodating die size up to HEX-4. It provides the highest power capability and the lowest possible ON-resistance in any existing surface-mount package. This package is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2W in a typical surface-mount application.
Dynamic dV/dt rating
Repetitive avalanche rated
Logic-level gate drive
RDS (ON) Specified at VGS = 4 and 5V
Surface-mount
Halogen-free
