ISL6115 - Intersil

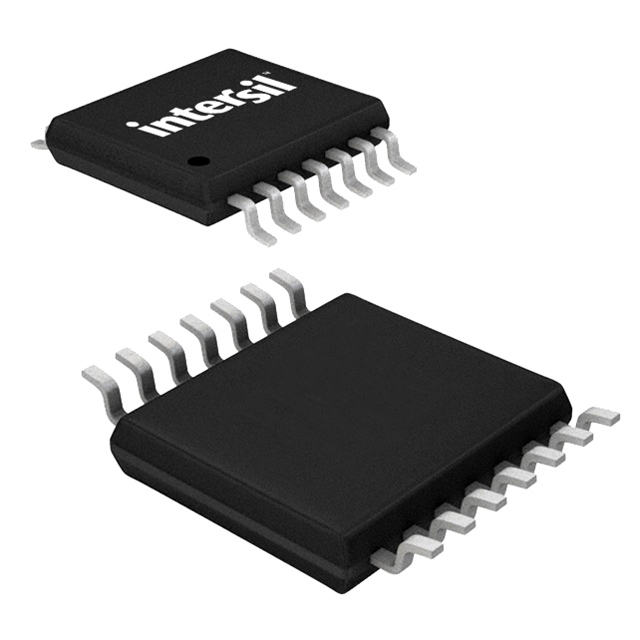

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ISL6115
Manufacturer

Intersil
ChipWorker Part#

CW563993729
RoHS

Lead free / RoHS Compliant
Description

Power Distribution Controllers
Documentation

Datasheet

ISL6115 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ISL6115 Specifications

Attribute	Attribute Value

Part Number	ISL6115
Manufacturer	Intersil
ChipWorker Part#	CW563993729
Documentation	Datasheet
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant

Product Description

Power Distribution Controllers
This family of fully featured hot swap power controllers targets applications in the +2.5V to +12V range. The
ISL6115 is for +12V control, the ISL6116 for +5V, the ISL6117 for +3.3V and the ISL6120 for +2.5V control
applications. Each has a hard wired undervoltage (UV) monitoring and reporting threshold level approximately
80% of the aforementioned voltage.
Features
• HOT SWAP Single Power Distribution Control (ISL6115 for +12V, ISL6116 for +5V, ISL6117 for +3.3V and ISL6120 for +2.5V)
• Overcurrent Fault Isolation
• Programmable Current Regulation Level
• Programmable Current Regulation Time to Latch-Off
• Rail-to-Rail Common Mode Input Voltage Range (ISL6115)
• Internal Charge Pump Allows the Use of N-Channel MOSFET for +12V Control (ISL6115)
• Undervoltage and Overcurrent Latch Indicators
• Adjustable Turn-On Ramp
• Protection During Turn-On
• Two Levels of Overcurrent Detection Provide Fast Response to Varying Fault Conditions
• 1µs Response Time to Dead Short
• Pb-Free Available (RoHS Compliant)
Applications
• Power Distribution Control
• Hot Plug Components and Circuit
