IXGH48N60C3D1 - IXYS Semiconductor

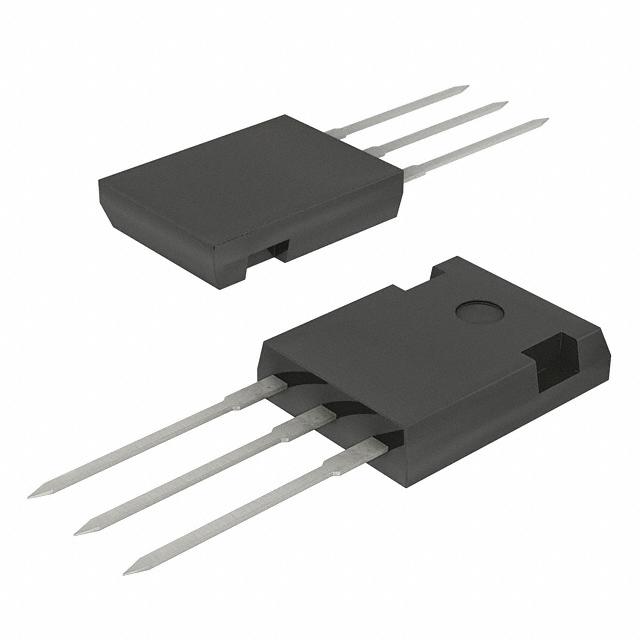

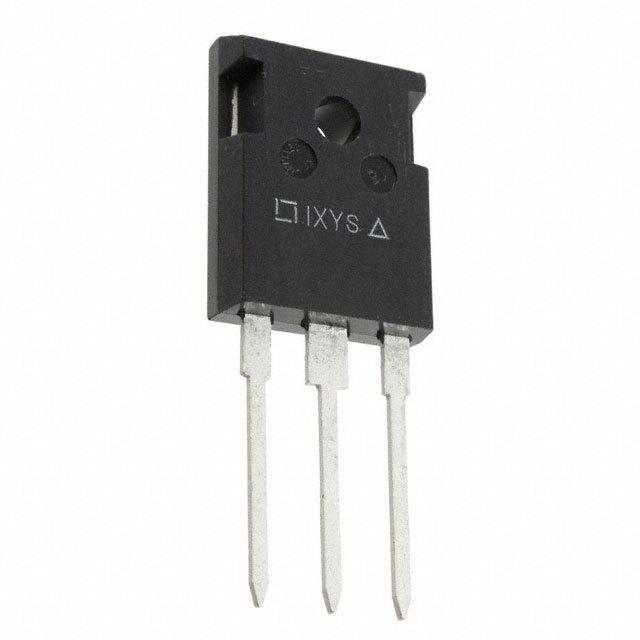

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IXGH48N60C3D1
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW48754936
Category

IGBT Transistor, IGBT Module
Package

TO-247-3
Description

Trans IGBT Chip N-CH 600V 75A 300000mW 3Pin(3+Tab) TO-247AD
Documentation

Datasheet

IXGH48N60C3D1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IXGH48N60C3D1 Specifications

Attribute	Attribute Value

Part Number	IXGH48N60C3D1
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW48754936
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Power Dissipation	300000 mW
Breakdown Voltage (Collector to Emitter)	600 V
Reverse recovery time	25 ns
Input Power (Max)	300 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300000 mW
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

IXYS extends its GenX3™ insulated gate bipolar transistor (IGBT) product line to 600 volts. These new IGBTs are manufactured using IXYS’ state-of-the-art GenX3™ IGBT process and utilize IXYS’ advanced Punch-Though (PT) technology, tailored to provide higher surge current capabilities, lower saturation voltages, and lower switching losses.
