LB11961 - Sanyo Semiconductor

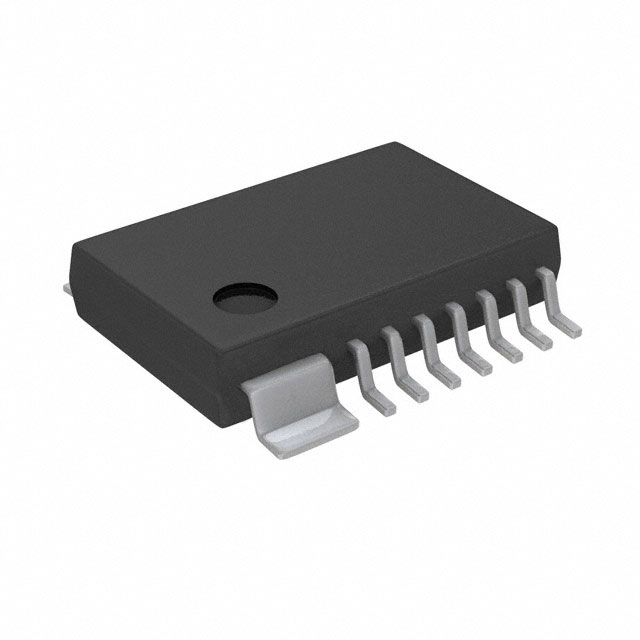

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LB11961
Manufacturer

Sanyo Semiconductor
ChipWorker Part#

CW297410534
RoHS

Lead free / RoHS Compliant
Description

Brushless DC Motor Controller, 1A, BIPolar, PDSO14, 0.225INCH, HSSOP-14
Documentation

Datasheet

LB11961 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LB11961 Specifications

Attribute	Attribute Value

Part Number	LB11961
Manufacturer	Sanyo Semiconductor
ChipWorker Part#	CW297410534
Documentation	Datasheet
Case/Package	HLSSOP
	expand all
Product Lifecycle Status	Obsolete
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Overview
The LB11961 is a single-phase bipolar drive motor driver that easily implements direct PWM motor drive systems with excellent efficiency. The LB11961 is optimal for fan motor drive in personal computer power supply systems and CPU cooling fan systems.
Features
•Single-phase full-wave drive (16V, 1.0A transistors are built in)
•Built-in variable speed function controlled by a thermistor input
The LB11961 can implement quiet, low-vibration variable speed control using externally clocked high side transistor direct PWM drive.
•Built-in regenerative diode (Di); only requires a minimal number of external components.
•Built-in HB
•Minimum speed setting pin (allows full-speed mode operation at startup)
•Operates in full-speed mode when the thermistor is removed.
•Built-in lock protection and automatic recovery circuits
•FG (speed detection) and RD (lock detection) outputs
•Built-in thermal shutdown circuit
