LM2903YPT ,Comparator, Analog Comparator IC - ST Microelectronics

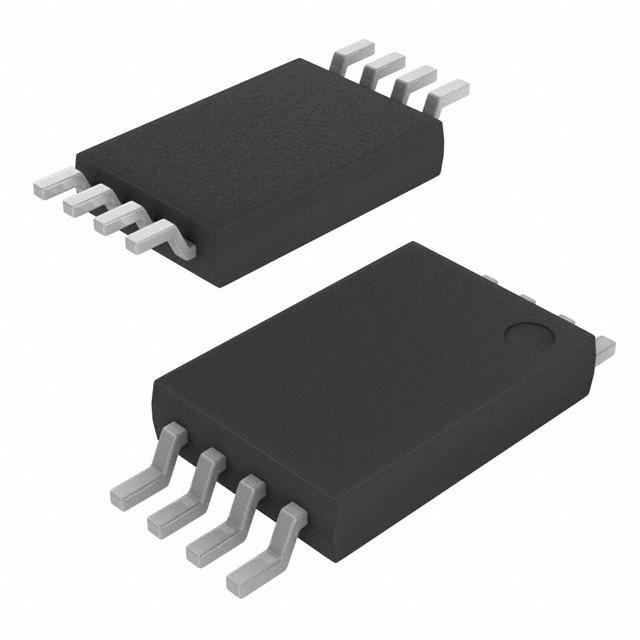

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
146 points
-
Part NoLM2903YPT
-
ManufacturerST Microelectronics
-
ChipWorker Part#CW3033503
-
CategoryComparator, Analog Comparator IC
-
PackageTSSOP-8
-
DescriptionAnalog Comparators LP Dual Comparator 2V to 26V 25nA
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие499 pcs In Stock
-
Estimated Price$ 0.08
Payment Methods and Delivery
{{ estimate }}
Buy LM2903YPT
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
LM2903YPT Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
LM2903YPT Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | LM2903YPT | |
| Manufacturer | ST Microelectronics | |
| ChipWorker Part# | CW3033503 | |
| Category | Comparator, Analog Comparator IC | |
| Documentation | Datasheet | |
| Mounting Style | Surface Mount | |
| Number of Pins | 8 Pin | |
| Case/Package | TSSOP-8 | |
| Output Current | 16mA @5V | |
| Supply Current | 1 mA | |
| Number of Channels | 2 Channel | |
| Number of Positions | 8 Position | |
| Input Offset Voltage | 7 mV | |
| Operating Temperature (Max) | 125 ℃ | |
| Operating Temperature (Min) | -40 ℃ | |
| Supply Voltage (Max) | 36 V | |
| Supply Voltage (Min) | 2 V | |
| expand all | ||
| Size-Length | 4.5 mm | |
| Size-Width | 3.1 mm | |
| Size-Height | 1.2 mm | |
| Operating Temperature | -40℃ ~ 125℃ | |
| Product Lifecycle Status | Active | |
| Packaging | Tape & Reel (TR) | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| ECCN Code | EAR99 |
Similar & Replacement Parts
Similar products
Product Description
- This device consists of two independent low-power voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible.
- In addition, the device has a unique characteristic in that the input common-mode voltage range includes the negative rail even though operated from a single power supply voltage.
- **Key Features**
- Wide single supply voltage range or dual supplies +2 V to +36 V or ±1 V to ±18 V
- Very low supply current (0.4 mA) independent of supply voltage (1 mW/comparator at +5 V)
- Low input bias current: 25 nA typ.
- Low input offset current: ±5 nA typ.
- Input common-mode voltage range includes negative rail
- Low output saturation voltage:250 mV typ. (IO = 4 mA)
- Differential input voltage range equal to the supply voltage
- TTL, DTL, ECL, MOS, CMOS compatible outputs
- Automotive qualification
- Related products
- See LM2903W for similar device with higher ESD performances
- See LM2903H for similar device with operating temperature up to 150 °C
