LM319MX - Fairchild

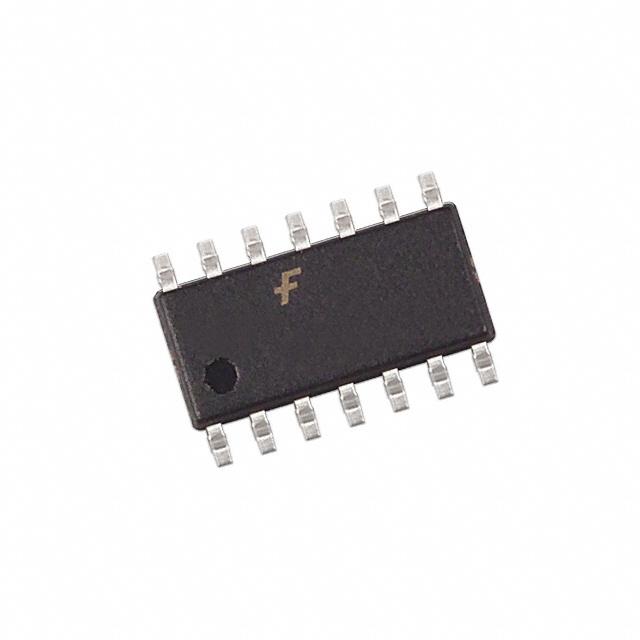

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM319MX
Manufacturer

Fairchild
ChipWorker Part#

CW11923673
Category

Comparator, Analog Comparator IC
RoHS

Lead free / RoHS Compliant
Description

FAIRCHILD SEMICONDUCTOR LM319MX Analogue Comparator, Dual, High Speed, 2, 80ns, 5V to ± 15V, SOP, 14Pins
Documentation

Datasheet

LM319MX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM319MX Specifications

Attribute	Attribute Value

Part Number	LM319MX
Manufacturer	Fairchild
ChipWorker Part#	CW11923673
Category	Comparator, Analog Comparator IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOP-14
Supply Voltage (DC)	36.0 V
Output Current	25 mA
Supply Current	3.6 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	14 Position
Power Dissipation	500 W
Input Offset Voltage	8 mV
Input Bias Current	1000 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	500 mW
Supply Voltage	5V ~ 15V
	expand all
Size-Length	8.76 mm
Size-Width	4.2 mm
Size-Height	1.55 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The LM319MX is a dual high speed Voltage Comparator designed to operate from a single 5V supply up to ±15V dual supplies. Open collector of the output stage makes the LM319 compatible with RTL, DTL and TTL as well as capable of driving lamps and relays at currents up to 25mA. Typical response time of 80ns with ±15V power supplies makes the LM319 ideal for application in fast A/D converts, level shiftier, oscillators and multi-vibrators.
Inputs and outputs can be isolated from system ground
Minimum fan-out of 2
Typically 80ns response time at ±15V
35V Open collector outputs
25mA High output drive current
2 Independent comparators
