LMC6482IMM - TI

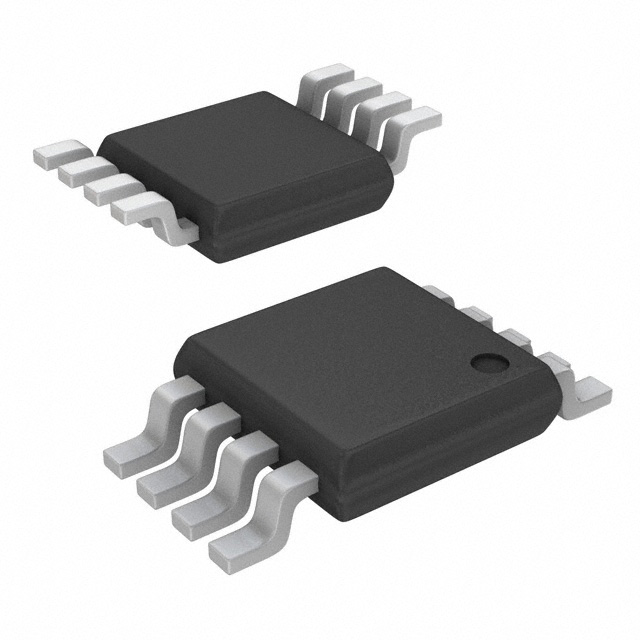

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LMC6482IMM
Manufacturer

TI
ChipWorker Part#

CW15891763
Category

Operational Amplifier, OP Amp IC
Package

VSSOP-8
Description

TEXAS INSTRUMENTS LMC6482IMM Operational Amplifier, Dual, 2 Amplifier, 1.5MHz, 1.3V/µs, 3V to 15.5V, MSOP, 8Pins
Documentation

Datasheet

LMC6482IMM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LMC6482IMM Specifications

Attribute	Attribute Value

Part Number	LMC6482IMM
Manufacturer	TI
ChipWorker Part#	CW15891763
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Output Current	≤30 mA
Supply Current	1.3 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Common Mode Rejection Ratio	65 dB
Input Offset Drift	1.00 µV/K
Bandwidth	1.5 MHz
Slew Rate	1.30 V/μs
Gain Bandwidth Product	1.5 MHz
Input Offset Voltage	110 µV
Input Bias Current	0.02 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1.5 MHz
Minimum CMRR Range	65 dB
Supply Voltage	3V ~ 15.5V
	expand all
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.86 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/06/15

Product Description

CMOS Amplifier 2 Circuit Rail-to-Rail 8-VSSOP
