LMV321IDBVR - TI

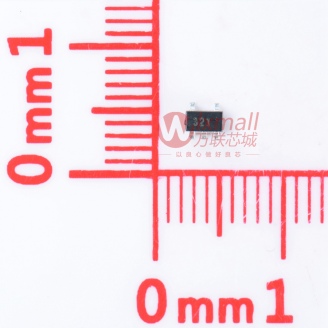

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoLMV321IDBVR
-
ManufacturerTI
-
ChipWorker Part#CW23542
-
CategoryOperational Amplifier, OP Amp IC
-
PackageSOT-23-5
-
DescriptionOperational Amplifier, Single, 1 Amplifier, 1MHz, 1V/µs, 2.7V to 5.5V, SOT-23, 5Pins
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
LMV321IDBVR Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
LMV321IDBVR Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | LMV321IDBVR |
| Manufacturer | TI |
| ChipWorker Part# | CW23542 |
| Category | Operational Amplifier, OP Amp IC |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Supply Voltage (DC) | 5.50 V |
| Operating Voltage | 2.7V ~ 5.5V |
| Supply Current | 130 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 5 Position |
| Common Mode Rejection Ratio | 50 dB |
| Input Offset Drift | 5.00 µV/K |
| Bandwidth | 1 MHz |
| Slew Rate | 1.00 V/μs |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 1.7 mV |
| Input Bias Current | 15 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 1 MHz |
| Minimum CMRR Range | 50 dB |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5V ~ 6V |
| expand all | |
| Size-Height | 1.3 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
Product Description
- The LMV321IDBVR is a single Operational Amplifier with rail-to-rail output swing. This device is the most cost-effective solutions for applications where low-voltage operation, space saving and low cost are needed. This amplifier is designed specifically for low-voltage (2.7 to 5V) operation, with performance specifications meeting or exceeding the LM358 and LM324 devices that operate from 5 to 30V. Additional features of the LMV3xx devices are a common-mode input voltage range that includes ground, 1MHz unity-gain bandwidth and 1V/µs slew rate.
- No crossover distortion
- Low supply current
- Rail-to-rail output swing
- ESD protection exceeds JESD 22
- Green product and no Sb/Br
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
