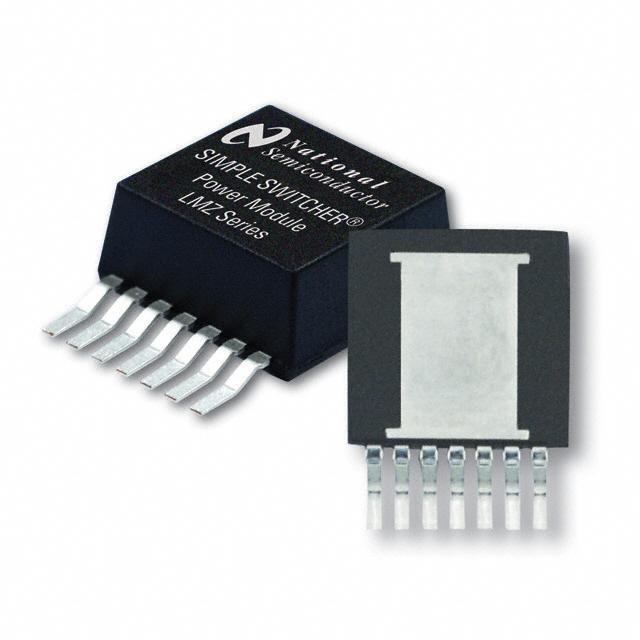

LMZ14201TZ-ADJ/NOPB ,DC to DC Converter - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

151 points

Part No

LMZ14201TZ-ADJ/NOPB
Manufacturer

TI
ChipWorker Part#

CW5342258
Category

DC to DC Converter
Package

TO-PMOD-7
Description

TEXAS INSTRUMENTS LMZ14201TZ-ADJ/NOPB DC-DC POL Converter, Adjustable, Buck, 1MHz, 800mV to 6V out, 1A, Module-7
