LMZ14201HTZ/NOPB ,DC to DC Converter - TI

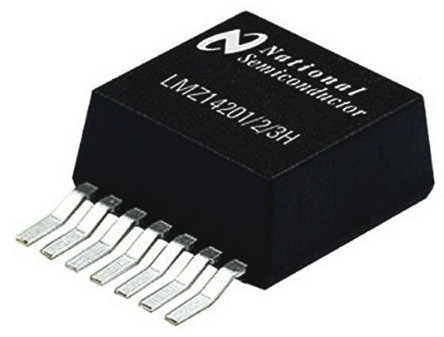

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

95 points

Part No

LMZ14201HTZ/NOPB
Manufacturer

TI
ChipWorker Part#

CW2102400
Category

DC to DC Converter
Package

TO-PMOD-7
Description

TEXAS INSTRUMENTS LMZ14201HTZ/NOPB DC-DC POL Converter, Adjustable, Buck, 1MHz, 5V to 24V out, 1A, Module-7
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 66.9

Buy LMZ14201HTZ/NOPB

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

LMZ14201HTZ/NOPB Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

LMZ14201HTZ/NOPB Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	LMZ14201HTZ/NOPB
Manufacturer	TI
ChipWorker Part#	CW2102400
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	TO-PMOD-7
Power Rating	30 W
Number of Outputs	1 Output
Output Voltage	5V ~ 24V
Output Current	1 A
Number of Positions	7 Position
Number of Regulated Outputs	1 Output
Switching Frequency	1 MHz
Input Voltage (Max)	42 V
Input Voltage (Min)	6 V
Output Voltage (Max)	24 V
Output Voltage (Min)	5 V
Output Current (Max)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	6V ~ 42V
	expand all
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

Provide the ability to switch between voltages by using this step down LMZ14201HTZ/NOPB DC to DC converter and switching regulator module. It has a voltage of 5 to 24 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
