LMZ31530RLGT - TI

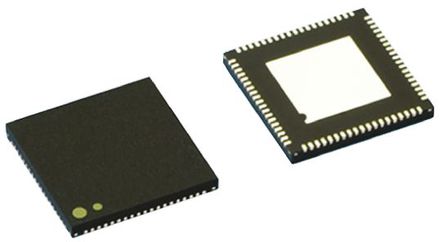

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LMZ31530RLGT
Manufacturer

TI
ChipWorker Part#

CW2298004
Category

DC to DC Converter, DC/DC Converter
Package

BQFN-72
Description

SIMPLE SWITCHER® 3V to 14.5V, 30A Power Module in Small QFN Package 72-BQFN -40℃ to 85℃
Documentation

Datasheet

LMZ31530RLGT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

LMZ31530RLGT Specifications

Attribute	Attribute Value

Part Number	LMZ31530RLGT
Manufacturer	TI
ChipWorker Part#	CW2298004
Category	DC to DC Converter, DC/DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	72 Pin
Case/Package	BQFN-72
Number of Outputs	1 Output
Output Voltage	0.6V ~ 3.6V
Output Current	30 A
Number of Regulated Outputs	1 Output
Switching Frequency	470kHz, 570kHz
Topology	Buck
Input Voltage (Max)	14.5 V
Input Voltage (Min)	3 V
Input Voltage (DC Max)	14.5 V
Input Voltage (DC Min)	3 v
Output Voltage (Max)	3.6 V
Output Voltage (Min)	600 mV
Output Current (Max)	30 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	3V ~ 14.5V
	expand all
Size-Length	16.15 mm
Size-Width	15 mm
Size-Height	5.8 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The LMZ31530RLGT is a 1-output surface-mount non-isolated SIMPLE SWITCHER® Power Module with 3.0 to 14.5V input. The LMZ31530 SIMPLE SWITCHER® power module is an easy-to-use integrated power solution that combines a 30A DC/DC converter with power MOSFETs, a shielded inductor and passives into a low profile. This total power solution allows as few as three external components and eliminates the loop compensation and magnetics part selection process. Achieves greater than 95% efficiency, has ultra-fast load step response and excellent power dissipation capability with a thermal impedance of 8.6°C/W. The LMZ31530 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering a wide range of ICs and systems. Advanced packaging technology affords a robust and reliable power solution compatible with standard QFN mounting and testing techniques.
Complete integrated power solution, smaller than a discrete design
Ultra-fast load step response
Wide-output voltage adjust 0.6 to 3.6V, with 1% reference accuracy
Optional split power rails allows
Selectable switching frequency, (300 to 850kHz)
Selectable slow-start
Adjustable over current limit
Power good output
Output voltage sequencing
Over-temperature protection
Pre-bias output start-up
