LQH5BPN1R5NT0L - muRata

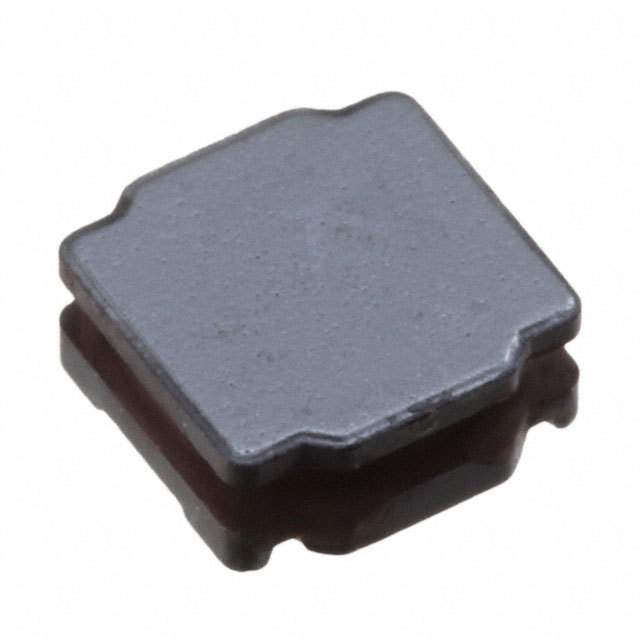

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LQH5BPN1R5NT0L
Manufacturer

muRata
ChipWorker Part#

CW10365126
Category

Inductor Surface Mount
Package

2020
Description

2020 1.5uH ±30%
Documentation

Datasheet

LQH5BPN1R5NT0L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LQH5BPN1R5NT0L Specifications

Attribute	Attribute Value

Part Number	LQH5BPN1R5NT0L
Manufacturer	muRata
ChipWorker Part#	CW10365126
Category	Inductor Surface Mount
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	2020
Current Rating	3 A
Capacitance Tolerance	±20 %
Inductance	1.5 µH
Self Resonant Frequency	70 MHz
Part Family	LQH
Inductance Tolerance	±30 %
Test Frequency	100 kHz
DC Resistance (DCR)	≤28.8 mΩ
Current Rating (DC)	5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.024 Ω
	expand all
Size-Length	5 mm
Size-Width	5 mm
Size-Height	2.2 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
Minimum Packing Quantity	500
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

1.5µH Shielded Inductor 3A 24mOhm Nonstandard
