LQM21FN220N00L - muRata

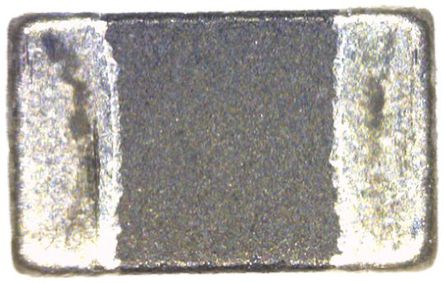

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LQM21FN220N00L
Manufacturer

muRata
ChipWorker Part#

CW2972878
Category

Inductor
RoHS

Lead free / RoHS Compliant
Description

0805 22uH ±30%
Documentation

Datasheet

LQM21FN220N00L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LQM21FN220N00L Specifications

Attribute	Attribute Value

Part Number	LQM21FN220N00L
Manufacturer	muRata
ChipWorker Part#	CW2972878
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package (SI)	2012
Case/Package	0805
Current Rating	13 mA
Capacitance Tolerance	±30 %
Inductance	22 µH
Self Resonant Frequency	15 MHz
Part Family	LQM
Resistance Tolerance	±30 %
Shielding	Yes
Inductance Tolerance	±30 %
Test Frequency	1 MHz
DC Resistance (DCR)	≤455 mΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	350 mΩ
	expand all
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	1.25 mm
Weight	0.016 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

22µH Shielded Multilayer Inductor 13mA 455mOhm Max 0805 (2012 Metric)
