LQP15MN27NG02D - muRata

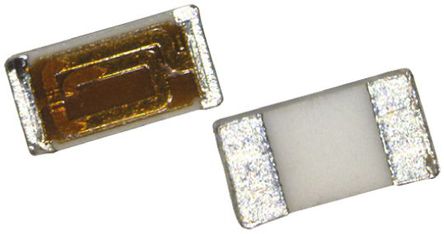

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LQP15MN27NG02D
Manufacturer

muRata
ChipWorker Part#

CW2525100
Category

Inductor
Package

0402
Description

0402 27nH ±2%
Documentation

Datasheet

LQP15MN27NG02D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LQP15MN27NG02D Specifications

Attribute	Attribute Value

Part Number	LQP15MN27NG02D
Manufacturer	muRata
ChipWorker Part#	CW2525100
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1005
Case/Package	0402
Current Rating	70 mA
Capacitance Tolerance	±2 %
Inductance	27 nH
Self Resonant Frequency	2.5 GHz
Q-Factor	13.0
Part Family	LQP
Resistance	3.10 Ω
Resonant Frequency	2.50 GHz
Inductance Tolerance	±2 %
Test Frequency	500 MHz
DC Resistance (DCR)	≤3.1 Ω
Current Rating (DC)	70 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	3.1 Ω
	expand all
Size-Length	1 mm
Size-Width	0.5 mm
Size-Height	0.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	10000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

27nH Unshielded Thick Film Inductor 70mA 3.1Ohm Max 0402 (1005 Metric)
